6.1 Scope

This chapter explains how trust works in the EUDI Wallet system, how it is established, maintained, validated, and managed. It describes the rules and assumptions that decide whether different parts of the system, like a wallet app, a user's device, or a service provider, can be trusted.

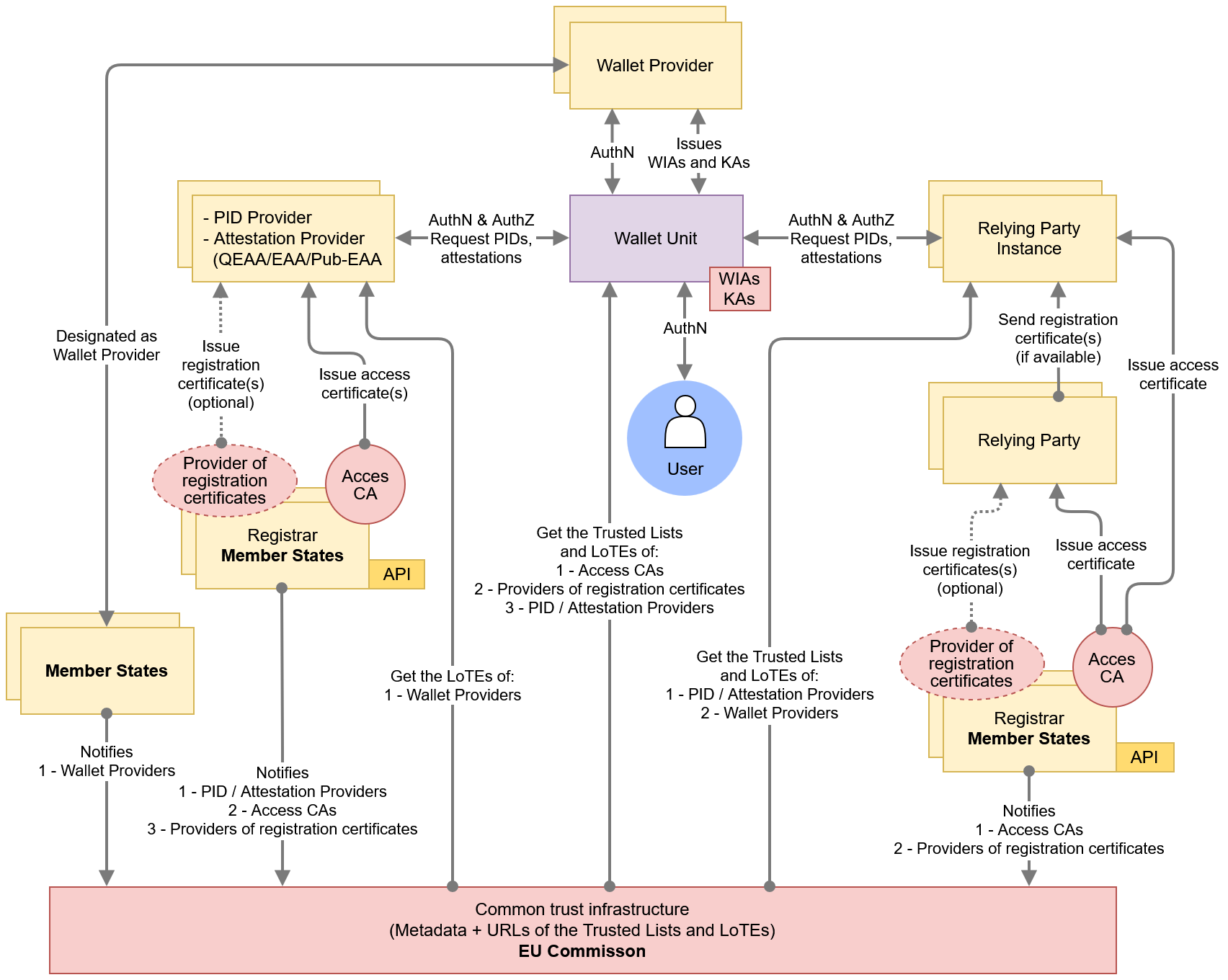

Figure 12 illustrates the main entities and their relationships in the trust model of the EUDI Wallet ecosystem.

At its core is the Wallet Unit (top middle, blue), which interacts with various entities throughout its lifecycle. The Wallet Unit lifecycle is described in Section 6.5 and consists of installation, activation, management, and uninstallation. Each Wallet Unit is a configuration of a Wallet Solution, comprising a Wallet Instance, a WSCA/WSCD, and one or more keystores, provided by a Wallet Provider or by the User's device. The User installs a Wallet Instance on their device, which leads to the activation of the Wallet Unit by the Wallet Provider. The Wallet Provider manages a Wallet Unit until it is uninstalled by the User. The Wallet Provider ensures that a valid Wallet Unit is in possession of at least one Key Attestation (KA) for each WSCA/WSCD or keystore, and at least one Wallet Instance Attestation (WIA). A KA attests the properties of a WSCA/WSCD or keystore and contains public keys for cryptographic binding. A WIA attests the integrity and revocation status of the Wallet Instance and describes the associated Wallet Solution. The Wallet Provider can revoke the Wallet Instance via the WIA revocation status to revoke the Wallet Unit. The Wallet Provider can revoke a WSCA/WSCD or keystore via the KA revocation status. See Section 6.5.

The Wallet Unit handles User PIDs and attestations (QEAAs, PuB-EAAs, and non-qualified EAAs). PIDs are issued by PID Providers and attestations by Attestation Providers, both positioned to the left of the Wallet Unit in Figure 12. Before interacting with a Wallet Unit, these Providers must be registered by a Registrar. Upon registration, they receive one or more access certificates from an Access Certificate Authority associated with the Registrar. They also obtain one or more registration certificates from an associated Provider of registration certificates. See Section 6.3.

After a Wallet Unit has received a PID or attestation, it can present User attributes to Relying Party Instances (right side of Figure 12). These instances are hardware/software setups enabling Relying Parties to interact with Wallet Units. Like a PID Provider or Attestation Providers, Relying Parties register with a Registrar in their Member State, and receive one or more access certificates for each of their Relying Party Instances. In addition, a Relying Party obtains one or more registration certificates from a Provider of registration certificates associated with the Registrar. This is discussed in Section 6.4.

Notes:

• This conceptual trust model may be implemented with slight variations across Member States, such as adopting one or multiple Certification Authorities or leveraging existing entities that already fulfil this role.
• For PIDs, qualified EAAs, and PuB-EAAs, interoperability is essential (Section 4.2.3). Interoperability is achieved by using a PKI following X.509 certificate standards (RFC 5280, RFC 3647) for signing PIDs, QEAAs, and PuB-EAAs. Non-qualified EAAs may adopt alternative trust models and verification mechanisms.
• The model supports both remote (see Section 4.4.2) and proximity (see Section 4.4.3 use cases.
• This version of the ARF does not yet include trust interactions for qualified electronic signatures or seals; see Topic 16.
• Besides the trust relationships described in this chapter, other trust relations are established as well. For instance, Users, PID Providers, Attestation Providers, and Relying Parties trust Conformity Assessment Bodies and Trusted List Providers (i.e., Member States) or LoTE Providers (i.e., the Commission). This trust is primarily rooted in authority and in procedural measures, such as public oversight, published security and operational policies, and audits, rather than in technical measures. To verify that entities are indeed interacting with a trusted authority, standard technical measures suitable for the context will be used.

6.2 Trust throughout a Wallet Provider lifecycle

6.2.1 Wallet Provider lifecycle

Section 4.6.2 presented the lifecycle of a Wallet Provider:

1. The Wallet Provider is notified to the Commission by a Member State. This is discussed in Section 6.2.2.
2. Under specific conditions, a Member State may decide to change the status of a registered Wallet Provider to Invalid. This is discussed in Section 6.2.3.

6.2.2 Wallet Provider notification

Figure 12 depicts the Wallet Provider to the top of the Wallet Unit. To the left and below of this, the figure also shows that a Member State notifies the Wallet Provider and its (certified) Wallet Solution(s) to the European Commission. Note that Wallet Providers are not registered according to CIR 2025/848, like Relying Parties, PID Providers, and Attestation Providers are. Wallet Providers consequently do not receive access certificates or registration certificates. This is because there is no need for interoperability between Wallet Providers and Wallet Units; each Wallet Provider only needs to communicate with its own Wallet Units.

Instead, the Wallet Solution provided by the Wallet Provider is certified as described in Chapter 7, and then registered in accordance with CIR 2024/2980. In that process, information about the corresponding Wallet Provider, including its trust anchors, is notified by the Member State. If the notification process is successful, the Commission includes the trust anchors of the Wallet Provider in the Wallet Provider LoTE.

During issuance of a PID or attestation, a PID Provider or Attestation Provider can use these trust anchors for two purposes:

• to verify the authenticity of WIAs and KAs they obtain from Wallet Units, so they can be sure they are dealing with an authentic Wallet Unit from a trusted Wallet Provider.
• to verify the authenticity of Attestation Status Lists they use to verify the revocation status of received WIAs and KAs.

Note that the trust anchors for these two purposes may be the same. However, they also may be different, because a Wallet Provider can outsource the responsibility of providing revocation lists to a third party. However, if so, the Wallet Provider ensures that the relevant trust anchors are included in the Wallet Provider LoTE.

See Section 6.6.2.4 and Topic 9.

More details on the Wallet Provider notification process can be found in Topic 31.

6.2.3 Wallet Provider invalidation

The Member State may decide to notify the Commission that the Wallet Provider's status in the corresponding LoTE should be changed to Invalid. As a result of this status change, PID Providers and Attestation Providers will no longer trust the trust anchors of the Wallet Provider, which they need to verify the KAs and WIAs they receive from Wallet Units. They will therefore refuse to issue PIDs and attestations to any Wallet Unit provided by that Wallet Provider. The Member State can subsequently notify the Commission that the Wallet Provider's status should be changed to Valid again. The notification of the status change and its reflection in the Wallet Provider LoTE follow the procedures laid down in CIR 2024/2980.

As a result of being invalidated, the Wallet Provider will revoke its valid Wallet Units, see Section 6.5.4.2.

Note that independently of the status of the Wallet Provider, its Wallet Solution may be suspended or withdrawn, see Section 4.6.3. In that case, the Wallet Provider revokes all associated Wallet Units if necessary, see Section 6.5.4.2. The result is the same: PID Providers and Attestation Providers will stop issuing PIDs and attestations to these Wallet Units.

6.3 Trust throughout a PID Provider or an Attestation Provider lifecycle

6.3.1 PID Provider or Attestation Provider lifecycle

Section 4.6.5 presented the lifecycle of a PID Provider or Attestation Provider:

1. A PID Provider or an Attestation Provider is registered by a Registrar in its Member State. This is discussed in Section 6.3.2.
2. Under specific conditions, the Registrar may decide to suspend or cancel registration of a registered PID Provider or Attestation Provider. This is discussed in Section 6.3.3.

6.3.2 PID Provider or Attestation Provider registration and notification

6.3.2.1 Introduction

Figure 12 depicts the PID Providers and Attestation Providers to the left of the Wallet Unit. To the left and below of this, the figure also shows that each PID Provider and Attestation Provider will register itself with a Registrar in its Member State. The Member State conditionally notifies a PID Provider or Attestation Provider to the European Commission:

• PID Providers are notified to the Commission.
• QEAA Providers are not notified to the Commission, except for establishing the Art. 22 Trusted List once a qualified status is granted.
• PuB-EAA Providers are notified to the Commission.
• Non-qualified EAA Providers are not notified to the Commission.

If the registration and notification processes are successful, at least the following happens:

• Data about the PID Provider or Attestation Provider is included in the registry of the relevant Registrar.
• The PID Provider or Attestation Provider receives one or more access certificates and one or more registration certificates.
• The trust anchors of the PID Provider or Attestation Provider are conditionally included in a Trusted List or LoTE.

These processes are discussed in the next subsections.

6.3.2.2 Data about the PID Provider or Attestation Provider is included in the registry

When a PID Provider or Attestation Provider is registered, the Registrar registers a set of data about the PID Provider or Attestation Provider in its register. The Registrar makes the contents of the register available to the general public, both in machine-readable and human-readable format. High-level requirements on the registration process can be found in Topic 27.

The data to be registered about a PID Provider, QEAA Provider, PuB-EAA Provider, or EAA Provider includes the PID or attestation type(s) that the Provider intends to issue to Wallet Units. This enables Wallet Units and Relying Parties to verify that a given PID Provider or Attestation Provider registered its intent to issue a specific PID or attestation type. For example, a PuB-EAA Provider may have registered for issuing mDLs, but not to issue diplomas.

Regarding PID Providers or QEAA Providers, it may be argued that Wallet Units do not have to do this verification, since these are trusted parties. Nevertheless, it is beneficial if a Wallet Unit verifies if a PID Provider or QEAA Provider is registered for issuing a PID or a particular type of QEAA, prior to requesting the issuance of such a PID or QEAA. Doing this helps to prevent attempts to issue a PID or attestation while not being entitled to do so, either fraudulently or as a result of an error.

Note that the Registrar collects the following information only for the purpose of transparency and does not apply any pre-authorisation process on it:

• Contact information of the registering PID Provider or Attestation Provider,
• Description of the services of the PID Provider or Attestation Provider,
• Types of attestation registered.

In particular, registration of a specific attestation type for a specific PID Provider or Attestation Provider does not imply that the Registrar (or any other entity in the EUDI Wallet ecosystem) authorises the Provider to issue attestations of that type. If authorisation is necessary for issuing a specific attestation type, it takes place out of scope of the EUDI Wallet ecosystem.

6.3.2.3 PID Provider or Attestation Provider receives access certificate(s) and registration certificate(s)

When a PID Provider or Attestation Provider is registered by a Member State, an Access Certificate Authority (see Section 3.18) issues one or more access certificates to the PID Provider or to the Attestation Provider. A PID Provider or an Attestation Provider needs such a certificate to authenticate itself towards a Wallet Unit when issuing a PID or an attestation to it, as described in Section 6.6.2.2.

A PID Provider access certificate does not indicate that its subject is a PID Provider. Similarly, an Attestation Provider access certificate does not indicate that its subject is a QEAA Provider, a PuB-EAA Provider, or a non-qualified EAA Provider. Furthermore, the access certificate of a PID Provider or Attestation Provider does not contain the Provider's registration to issue attestations of a specific type, for instance an mDL or diploma. Such information is instead included in registration certificates. Upon registration, the PID Provider or Attestation Provider receives one or more registration certificates from a Provider of registration certificates, see Section 3.19.

A Wallet Unit can use the information in the registration certificate to verify that an Attestation Provider it is contacting to issue a specific type of attestation is in fact registered for that type of attestation. The information in a registration certificate is also available in human-readable and machine-readable format via the Registrar's online service. The API and interfaces for that are specified in Technical Specification 5.

The PID Provider or Attestation Provider includes an access certificate and a registration certificate in its Credential Issuer metadata, specified per OpenID4VCI and ETSI TS 119 472-3, to make them available to Wallet Units.

Note that an Attestation Provider may simultaneously be a Relying Party, for instance in case it intends to request data from the User's PID during issuance of an attestation. Such an Attestation Provider would then register both as a Relying Party (which is called a Service Provider in Technical Specification 5) and as a QEAA Provider, PuB-EAA Provider, or non-qualified EAA Provider. In that case, the registration certificate(s) issued to the Attestation Provider will include both roles. Registration certificates for Relying Parties are discussed in Section 6.4.2.

See Sections 6.6.2.2 and 6.6.2.3 to learn more about how Wallet Units use a PID Provider's or Attestation Provider's access certificates and registration certificates.

6.3.2.4 PID Provider or Attestation Provider trust anchors are conditionally included in a Trusted List or LoTE

For a PID Provider or a PuB-EAA Provider, successful registration and notification also means that the Provider is notified to the European Commission and that its trust anchors are included in the respective LoTE by the Commission. The trust anchors of a QEAA Provider are included in a Trusted List once it gets the qualified status.

Relying Parties can use these trust anchors for two purposes:

• to verify the authenticity of PIDs, QEAAs, and PuB-EAAs they obtain from Wallet Units.
• to verify the authenticity of Attestation Status Lists or Attestation Revocation Lists they use to verify the revocation status of received PIDs, QEAAs, and PuB-EAAs, if any.

Note that the trust anchors for these two purposes may be the same. However, they also may be different, because a PID Provider or Attestation Provider can outsource the responsibility of providing revocation lists to a third party. However, if so, the PID Provider or Attestation Provider ensures that the relevant trust anchors are included in the relevant Trusted List or LoTE.

Non-qualified EAA Providers are not notified by a Member State and their trust anchors are not included in a LoTE by the Commission. However, if a Relying Party requests a non-qualified EAA from a Wallet Instance, it must know how to obtain the trust anchor it needs to verify the signature over that EAA. To help with this, Topic 12 recommends that the applicable Rulebook specifies the mechanisms enabling this. This mechanism may be a LoTE complying with ETSI TS 119 602. However, other methods may be used as well, and even if such a LoTE exists, it does not have to comply with the requirements in Topic 31.

High-level requirements on the PID Provider or Attestation Provider notification process, as well as on the information registered and published in the respective Trusted List or LoTE, can be found in Topic 31.

6.3.3 Suspension or cancellation of the registration of a PID Provider or Attestation Provider

Under specific conditions, a Registrar may decide to suspend or cancel the registration of a PID Provider or Attestation Provider. The conditions for this will be specified by each Registrar.

Suspension or cancellation implies that the PID Provider's or Attestation Provider's access certificates are revoked. As a result, the PID Provider or Attestation Provider will no longer be able to issue PIDs or attestations to Wallet Units.

For a PID Provider, QEAA Provider, or PuB-EAA Provider, suspension or cancellation also implies that its status in the respective Trusted List or LoTE will be changed to Invalid. As a result, Relying Parties will no longer trust PIDs or attestations issued by that Provider. For non-qualified EAA Providers, the applicable Rulebook (see Topic 12) may define similar mechanisms ensuring that Relying Parties will no longer trust the trust anchors of EAA Providers of which the registration was suspended or cancelled.

When a Registrar suspends or cancels the registration of a PID Provider or Attestation Provider, the PID Provider or Attestation Provider revokes all of their PIDs or attestations as described in Section 6.6.6.4.

6.4 Trust throughout a Relying Party lifecycle

6.4.1 Relying Party lifecycle

Section 4.6.7 presented the lifecycle of a Relying Party:

1. A Relying Party is registered by a Registrar in the Member State where it resides. Relying Party registration is discussed in Section 6.4.2.
2. Under specific conditions, a Registrar may decide to suspend or cancel the registration of a Relying Party. This is discussed in Section 6.4.3.

6.4.2 Relying Party registration

Figure 12 depicts the Relying Party Instance to the right of the Wallet Unit. A Relying Party Instance is a combination of hardware and software used by a Relying Party to interact with a Wallet Unit. A Relying Party can operate multiple Relying Party Instances. This will happen especially in case the interactions with the Wallet Unit take place in proximity; for instance, a border control agency at an airport employing multiple lines (each operated by an agency employee) where arriving passengers can present their PID. However, a single Relying Party operating multiple Relying Party Instances can also happen in a remote context, for example if there is an operational system (including a remote Relying Party Instance) next to a fallback system used for business continuity purposes. A Relying Party may also use multiple remote Relying Party Instances for load distribution.

Figure 12 also shows the Relying Party. Below that, it shows that each Relying Party will register itself with a Registrar in its Member State. If the registration process is successful, the Registrar includes the Relying Party in its public registry.

A Relying Party may register in the context of several services, having different intended uses. Each intended use will require a different set of attributes to be obtained from a Wallet Unit. As a result, a single Relying Party may register multiple times and may be issued more than one registration certificate.

Note that the Registrar collects the following information only for the purpose of transparency and does not apply any pre-authorisation process on it:

• Contact information of the registering Relying Party,
• Description of the services of the Relying Party,
• Attributes registered for each intended use,
• Description of each intended use.

In particular, registration of a specific set of attributes for a specific intended use of a specific Relying Party does not imply that the Registrar (or any other entity in the EUDI Wallet ecosystem) authorises the Provider to request those attributes for that intended use. If authorisation is necessary for requesting specific attributes, it takes place out of scope of the EUDI Wallet ecosystem.

As a result of successful registration,

• a Provider of registration certificates (see Section 3.19) associated with the Registrar issues one or more registration certificates to the Relying Party. The purpose of the registration certificate is described in Section 6.6.3.3. The Provider of registration certificates complies with the requirements in CIR 2025/848, including those for the associated policy and practice statement in Annex V. Issuance of registration certificates takes places in an automated manner and without undue delay.
• an Access Certificate Authority (see Section 3.18) associated with the Registrar issues an access certificate to each Relying Party Instance of the Relying Party. A Relying Party Instance needs such a certificate to authenticate itself towards Wallet Units when requesting the presentation of attributes, as described in Section 6.6.3.2. Issuing access certificates to a registered Relying Party is mandatory.

See Sections 6.6.3.2 and 6.6.3.3 to learn more about how Wallet Units use a Relying Party's access certificates and registration certificates.

High-level requirements on the Relying Party registration process can be found in Topic 27.

6.4.3 Relying Party suspension or cancellation

Under specific conditions, a Registrar may decide to suspend or cancel the registration of a registered Relying Party. The conditions for this will be specified by each Registrar.

Suspension or cancellation involves revocation of all valid access certificates of the Relying Party by the relevant Access CA, such that the Relying Party is no longer able to interact with Wallet Units. It also implies that all of the Relying Party's registration certificates are revoked. The Provider of registration certificates publishes revocation information (in the form of a status list) in accordance with ETSI TS 119 475.

6.5 Trust throughout a Wallet Unit lifecycle

6.5.1 Wallet Unit lifecycle

Section 4.6.4 above presented the lifecycle of a Wallet Unit:

1. The Wallet Instance that is part of the Wallet Unit is installed on a device by a User. The required trust relationships for installation are discussed in Section 6.5.2 below.
2. Next, the Wallet Unit is activated by the Wallet Provider and the User and becomes operational. The goals and required trust relationships for activation are discussed in Section 6.5.3.
3. Once in the Operational or Valid state, the Wallet Unit is managed by the User and the Wallet Provider. This management includes at least revoking the Wallet Unit when necessary. This is discussed in Section 6.5.4. Management will also include regular updates of the Wallet Instance application to ensure its continued security and functionality. However, this is not further defined in this chapter.
4. The User may uninstall the Wallet Instance; see Section 6.5.5.

6.5.2 Wallet Instance installation

6.5.2.1 Required trust relationships

Note: This section assumes that the Wallet Instance is an app installed on the User's device. As explained in Section 4.3.2, a Wallet Instance can also be implemented as a web application. In that case, installation of the app is not necessary. Instead, the User will create an account at the Wallet Provider, see Section 6.5.3.6, and all attestations and other data in the Wallet Instance will be associated with that account. The descriptions in this section and the associated requirements in Topic 40, section A, do no apply to web wallets.

The lifecycle of a Wallet Unit starts when a User decides to install a Wallet Instance application on their device. This application in an instance of a Wallet Solution, which is provided to the User by a Wallet Provider.

When downloading and installing the Wallet Instance, the following trust relationships are established:

1. On behalf of the User, the OS of the User's device and the relevant app store verify that the Wallet Instance (i.e., the application the User is installing) is genuine and authentic and does not contain any malware or other threats.
2. The User verifies that they can obtain the PID(s) they need in an instance of this Wallet Solution. If the relevant PID Provider does not support the Wallet Solution, the User will not be able to use the Wallet Unit for obtaining those PID(s).

The next two sections discuss these trust relationships. For high-level requirements regarding Wallet Instance installation, see Topic 40, section A.

6.5.2.2 Wallet Solution authenticity is verified

To ensure that the User can trust the Wallet Solution, Wallet Providers preferably make their certified Wallet Solutions available for installation via the official app store of the relevant operating system (e.g., Android, iOS). This allows the operating system of the device to perform relevant checks regarding the authenticity of the app. It also allows Users to use the same well-known channel for obtaining a Wallet Instance as they use for obtaining other apps. Finally, it avoids a situation where a User must allow side-loading of apps, which would increase the risk of unintentionally installing malicious apps.

If a Wallet Provider makes its Wallet Solution available for installation through other means than the official OS app store, it implements a mechanism allowing the User to verify the authenticity of the Wallet Unit. Moreover, the Wallet Provider provides clear instructions to the User on how to install the Wallet Unit, including:

• instructions on how to verify the authenticity of the Wallet Instance to be installed. This can be done, for example, by comparing the hash value of the application downloaded by the User with a hash value published by the Wallet Provider.
• instructions on bypassing of any operating system limitations on side-loading of apps, if applicable, and ensuring that these limitations are restored after the Wallet Instance has been installed.

6.5.2.3 User validates that Wallet Solution is usable with relevant PID

A User installs a Wallet Unit because they want to obtain and use one or more PIDs. However, PID Providers are not required to support all Wallet Solutions in the EUDI Wallet ecosystem. 'Support' here means that the PID Provider is willing to issue a PID to an instance of a given Wallet Solution on request of the User. Instead, a PID Provider may choose to support only a single Wallet Solution or a limited number of Wallet Solutions. Therefore, each PID Provider will publish a list of Wallet Solutions that they support, such that a User that wants to request a PID from that PID Provider knows which Wallet Unit they should install. This list could be published, for example, on the PID Provider's website.

Conversely, a Wallet Solution is not required to support all PID Providers, where 'support' means that it is able to request the issuance of a PID from a PID Provider. Each Wallet Provider will, prior to or during installation of a Wallet Instance, let the User know which PID Providers are supported by this Wallet Solution.

For QEAAs, PuB-EAAs, and non-qualified EAAs, the situation is different. Providers of such attestations will support all Wallet Solutions and are not allowed to discriminate between them when processing a request for the issuance of an attestation. Conversely, a Wallet Solution supports all Attestation Providers, and cannot discriminate between different Attestation Providers when requesting the issuance of an attestation at the User's request.

6.5.3 Wallet Unit activation

6.5.3.1 Introduction

After installation of the Wallet Instance, the new Wallet Instance will contact the Wallet Provider to start the activation process. For successful Wallet Unit activation, the following trust relations are established:

1. The Wallet Instance authenticates the Wallet Provider, meaning that the instance is sure that it is dealing with the genuine Wallet Provider who provided it to the User.
2. The Wallet Provider authenticates the Wallet Instance. This means that the Wallet Provider is sure that the instance is indeed a true instance of their Wallet Solution, and not a fake app.

Both of these trust relationships are the responsibility of the Wallet Provider. The ARF does not specify how these trust relationships can be satisfied.

During the activation process, at least the following steps happen:

1. The Wallet Provider requests data about the User's device from the Wallet Instance.
2. The Wallet Provider requests the User to set up two User authentication mechanisms.
3. The Wallet Provider issues one or more Key Attestations (KA) to the Wallet Unit.
4. The Wallet Provider issues one or more Wallet Instance Attestations (WIA) to the Wallet Unit.
5. The Wallet Provider sets up a User account for the User.

These steps are described in the sections below. For high-level requirements regarding Wallet Unit activation, see Topic 40, section B.

6.5.3.2 Wallet Provider requests data about the User's device from the Wallet Instance

6.5.3.2.1 Data collection for WSCA/WSCD and keystore deployment

The Wallet Instance connects to the Wallet Provider to be activated. Then, the Wallet Provider requests data about the User's device from the Wallet Instance. This data includes the characteristics of the local WSCD(s) and keystores available to the device for securely storing cryptographic keys and data. The Wallet Provider needs this information to deploy a WSCA/WSCD and optionally one or more keystores in the Wallet Unit, and to be able to issue one or more Key Attestations for each WSCA/WSCD or keystore to the Wallet Unit, see Section 6.5.3.4.

Notes:

• As discussed in Section 4.5, a WSCD may be integrated directly within the User's device. Examples of this include an e-SIM, a UICC, an embedded Secure Element, or native secure hardware accessible via the device's OS. If so, the Wallet Instance will discover the presence of such a WSCD during activation and will communicate the characteristics of the WSCD to the Wallet Provider. In some cases, the Wallet Provider will subsequently deploy a WSCA to the WSCD to facilitate communication between the Wallet Instance and the WSCD.
• Sometimes, the User's device does not contain a local WSCD, or the local WSCD does not have the security posture necessary to enable the Wallet Unit to be an identity means at LoA High, or the Wallet Provider does not want to use a local WSCD. In such cases, the Wallet Provider ensures the Wallet Unit gets access to a remote HSM operated by the Wallet Provider.

6.5.3.2.2 Data collection for Wallet Solution maintenance

In addition, the need for Wallet Solution maintenance may require the Wallet Provider to monitor its operational Wallet Instances. It is customary for mobile application developers to collect limited bug and error reports at runtime for improvement purposes. Error logs collected are minimised and, as a rule, do not contain personal data of the User. Where the monitoring described below nevertheless collects data that may constitute personal data under Regulation (EU) 2016/679 (for example device identifiers or locale), the Wallet Provider ensures an appropriate legal basis and privacy safeguards for that processing. A list of possible data types to be collected, reasons for collection, and how the Wallet Instance monitoring occurs (frequency, mechanisms, does the collection require Wallet User's approval beyond standard app vendor practices) is collected in the following table:

Data type	Reason for monitoring (if applicable, regulation)	Monitoring frequency etc.
Runtime errors	Uncaught errors in production code	runtime and crash logs
UX and telemetry information	UX field analysis, may not be used to obtain behavioural data	runtime logs - user consent preferred
OS version and health data	OS vulnerabilities	At Wallet Unit activation or OS update/upgrade and at continuous security posture monitoring
Wallet SDK and SW library versions	Wallet Instance code vulnerabilities	At Wallet Unit roll out (as part of CI/CD process), at continuous security posture monitoring
User locale/localisation data	Catching localisation related errors	runtime and crash logs - user consent preferred
Wallet Instance version	Old version related vulnerabilities or errors	At Wallet Unit activation, at continuous security posture monitoring
Supported WSCA/WSCDs and keystores	Cryptography-related incompatibilities	At Wallet Unit activation, at continuous security posture monitoring
WSCx capabilities supported	Cryptography configuration for EUDI Wallet use cases	At Wallet Unit activation
Unique device identifier such as IDFV or persisted UUID (iOS) or AndroidID (Android)	Up-to-date list of Wallet Instance related device installations, potential malicious use (unrecognised identifier)	At Wallet Unit activation
Sensor identifiers and patch levels	Up-to-date sensor hardware	At Wallet Unit activation, at continuous security posture monitoring
Hardware-level details on device	Identify known hardware-based problems or vulnerabilities	At Wallet Unit activation
BLE radio presence	Security of proximity use cases	At Wallet Unit activation
NFC support	Security of proximity use cases	At Wallet Unit activation

6.5.3.2.3 Data collection for fraud or risk signal monitoring

Although complete fraud or risk signal collection is not in scope of the ARF, Wallet Providers keep an active understanding of each individual Wallet Instance's security posture, provided this can be done in a privacy-preserving way. A list of information related to fraud or risk signals that is often collected in context of mobile devices, is presented in the table below, with an indication whether the data is collected by the Wallet Provider.

Data or tool type	Reason for security posture monitoring (if applicable, regulation)	Monitoring at Wallet Instance
Device OS	Detect potential OS vulnerabilities	OK - see previous table
Device type	Detect potential type-specific vulnerabilities	OK - see previous table
Behavioural data	Detect unusual transaction detection, including possible account takeovers (ATO)	Not OK (privacy preservation)
Device fingerprinting	Flag logins from unfamiliar devices, ATO	Not relevant - Wallet Provider has list of devices with an active Wallet Instance
Geolocation (IP address)	Network-layer anomaly detection, ATO	Not OK (privacy preservation)
Geolocation (GNSS)	Geospatial anomaly detection, ATO	Not OK (privacy preservation)
Active phone call detection	Detect authorised push payment fraud / phishing / social engineering	Not OK (privacy preservation)
VPN detection	Detect attempted identity or location masking through VPN	Not OK
Incognito mode detection	Detect attempts at hiding malicious activity or multiple login attempts	Not relevant
Device rooting/jailbreaking detection	Detect compromised device security as a whole	OK
Emulator detection	Detect emulation of User device by fraudsters	OK
Malware detection	Identify and neutralise malicious software	OK

For high-level requirements on Wallet Solution maintenance and the collection of fraud and risk signals by Wallet Provider, see Topic 56.

6.5.3.3 Wallet Unit requests User to set up two User authentication mechanisms

6.5.3.3.1 Introduction

During Wallet Unit activation, the Wallet Unit ensures that the Users sets up two User authentication mechanisms. The first of these mechanisms is implemented by the OS of the User's device, optionally combined with a Wallet Instance-specific PIN, and will be used before any operation of the Wallet Unit. The second mechanism is implemented by the WSCA/WSCD and will be used additionally when a PID or an attestation bound to the WSCA/WSCD is issued, presented, or deleted.

These two mechanisms are described in the next two subsections. See also the requirements on User authentication in Topic 40, Section C.

6.5.3.3.2 OS-level User authentication before any operation

During Wallet Unit activation, the Wallet Instance forces the operating system of the User's device to activate a multi-factor User authentication mechanism, if this is not already active. One of the authentication factors for this mechanism is the possession of the device and the other is knowledge-based or inherence-based. The Wallet Instance ensures that the authentication mechanism has security policies that are adequate for any operation of the Wallet Unit, excluding the issuance or presentation of PIDs, KAs describing the WSCA/WSCD, and attestations bound to the WSCA/WSCD. As described in the next section, for these actions User authentication by the WSCA/WSCD is necessary.

Actions for which OS-level authentication is sufficient include generating and presenting pseudonyms, accessing the transaction log via the dashboard, data export and migration, requesting the erasure of personal data by a Relying Party, and reporting a Relying Party to a Data Protection Authority. It also includes issuing, presenting, and deleting of attestations that are either not device-bound or bound to a keystore rather than the WSCA/WSCD. This implies that it must be possible to unlock the keystore(s) available to the Wallet Unit using this User authentication mechanism.

The User can optionally decide to use a Wallet Instance-specific PIN in addition to the OS-level User authentication mechanism.

User authentication to the Wallet Unit using the OS-level mechanism (plus optional PIN) will take place whenever the User opens the Wallet Instance, before the Wallet Unit performs any operation. This is necessary to prevent anyone except the User from accessing the Wallet Unit and inspecting the User's attestations and attribute values, as this data is personal and might be sensitive.

6.5.3.3.3 WSCA/WSCD-level User authentication before cryptographic operations

An additional User authentication, performed by the WSCA/WSCD, happens when the Wallet Unit performs any cryptographic operation involving cryptographic assets in the WSCA/WSCD. This will happen at least when:

• The User instructs the Wallet Unit to request the issuance of a new PID, see Section 6.6.2,
• The Wallet Unit asks the User for approval to present some attributes from a PID to a Relying Party, see Section 6.6.3.5,
• The User deletes a PID in their Wallet Unit, see Section 6.6.7.

In addition, if an Attestation Provider requested during issuance that the cryptographic assets of their attestation are stored and managed in the WSCA/WSCD, the WSCA/WSCD will also perform User authentication before such an attestation is issued, presented, or deleted.

Note that, as discussed in the first bullet in Section 6.6.3.9, these User authentication mechanisms can also play a role in ensuring User binding for PIDs or device-bound attestations. User binding allows a Relying Party to trust that the person presenting a PID or attestation is the User to whom the PID or the attestation was issued.

6.5.3.4 Wallet Provider issues one or more Key Attestations to the Wallet Unit

During the activation of a Wallet Unit, the Wallet Provider issues one or more Key Attestations (KA) to the Wallet Unit. A KA is a signed information object that has three main purposes:

• It describes the certification and properties of the WSCA/WSCD or a keystore that is part of the Wallet Unit. This allows a PID Provider or an Attestation Provider to verify that the WSCA/WSCD or keystore complies with the Provider's requirements and therefore is fit to protect the private keys for a PID or a device-bound attestation from the Provider.
• Moreover, a KA contains one or more public keys. The Wallet Provider attests that the private keys corresponding to these public keys are generated by and stored in the WSCA/WSCD or keystore described in the KA. During the issuance of a PID or a device-bound attestation (see Section 6.6.2.4), a PID Provider or Attestation Provider can use each of these public keys to bind a new PID or attestation to.
• Lastly, a KA contains a revocation reference allowing a PID Provider or an Attestation Provider to verify that the Wallet Provider did not revoke the WSCD or keystore described in the KA. The Wallet Provider selects either a type-shared index approach or a per-KA index approach for managing the revocation status of the WSCD or keystore; see Technical Specification 3. The revocation mechanisms for Wallet Units are described in Topic 38.

High-level requirements for KAs can be found in Topic 9. The detailed format of a KA, as well as the way in which it is used, is specified in Technical Specification 3.

A Wallet Unit does not send a KA to an Attestation Provider if the attestation it is requesting is not device-bound. For non-device-bound attestations, the Attestation Provider does not need to receive public keys to include in the attestations, and neither does it need information about the WSCA/WSCD or a keystore.

To ensure User privacy, the Wallet Unit presents KAs only to PID Providers and Attestation Providers, but not to Relying Parties. This is because PID Providers and Attestation Providers have a valid business reason to know these properties, whereas Relying Parties do not. Moreover, a Wallet Unit will present each KA only once. Apart from preventing linkability, this is also to prevent that the public keys in the KA are used in multiple PIDs or attestations.

Regarding the KA revocation maintenance period, an important requirement in CIR 2024/2977, Article 5, 4.(b) is that a PID Provider must revoke a PID when the Wallet Unit to which that PID was issued is revoked. Therefore, a PID Provider must be able to regularly check whether the Wallet Provider revoked the WSCD or keystore described in the KA the PID Provider received from the Wallet Unit during PID issuance, during the entire validity period of the PID. This implies that

• the technical validity period of a PID cannot exceed the end of the revocation maintenance period indicated in the KA received by the PID Provider during issuance. The same applies to the WIA; see Section 6.5.3.5. The Wallet Provider commits to maintaining the revocation status of the WSCD or keystore during the entire revocation maintenance period indicated in its KAs.
• a KA contains the information necessary to enable the PID Provider to check the revocation status of the WSCD or keystore. See also Section 6.6.2.5.

The responsibilities of the Wallet Provider regarding issuance of a KA are similar to those of a PID Provider or Attestation Provider regarding the issuance of a PID or an attestation. This means that after the initial issuance of KAs during activation, the Wallet Provider will manage the KAs and will issue new KAs to the Wallet Unit as needed, during the lifetime of the Wallet Unit.

6.5.3.5 Wallet Provider issues one or more WIAs to the Wallet Unit

During the activation of a Wallet Unit, the Wallet Provider also issues one or more Wallet Instance Attestations (WIA) to the Wallet Unit. Similar to KAs, WIAs are information objects signed by the Wallet Provider, and they contain a public key. However, a WIA differs from a KA in a few aspects:

• A WIA contains information about the Wallet Instance, including the Wallet Solution name, version, and certification of the Wallet Solution. This allows PID Providers and Attestation Providers to verify that the Wallet Instance belongs to a trusted and certified Wallet Solution, as registered in the Wallet Provider Trusted List.
• A WIA carries a revocation reference for the Wallet Instance, enabling PID Providers and Attestation Providers to check whether the Wallet Instance has been revoked.
• A WIA has a short technical validity period (less than 24 hours), ensuring that it reflects a recent integrity check of the Wallet Instance. In addition, a WIA specifies a revocation maintenance period, which may be considerably longer than the technical validity period. The Wallet Provider commits to maintaining the revocation status of the Wallet Instance during this entire period, enabling PID Providers to verify the revocation status of the Wallet Instance throughout the lifetime of the PID.
• The private key corresponding to the public key in the WIA is managed by the Wallet Instance; it does not have to be managed by the WSCA/WSCD or a keystore.
• A Wallet Unit sends a WIA to a PID Provider or Attestation Provider for both device-bound and non-device-bound attestations.

Similar to KAs, the Wallet Unit presents WIAs only to PID Providers and Attestation Providers, but not to Relying Parties.

Technical Specification 3 contains more information and requirements on the WIA.

6.5.3.6 Wallet Provider sets up a User account for User

The User needs a User account at the Wallet Provider to ensure that they can request the revocation of their Wallet Unit in case of theft or loss. The Wallet Provider associates the Wallet Unit with the User account. The Wallet Provider registers one or more backend-based User authentication methods that the Wallet Provider will use to authenticate the User. Note that:

• The Wallet Provider does not need to know any real-world attributes of the User, unless this is deemed necessary for PID activation, see Section 6.6.2.7. Otherwise, the User can use a pseudonym to register, for example an e-mail address. If the Wallet Provider wants to request additional User attributes, for instance to be able to provide additional services, they are free to do so if the User consents.
• In any case, User details registered by the Wallet Provider will not be included in a KA or a WIA. They are strictly for use by the Wallet Provider only.
• If the User already has an account with the Wallet Provider, the Wallet Provider can ask the User to log in to that account, rather than create a new account. Such a situation will primarily occur when the User migrates to a new Wallet Unit, for example in case they are moving to a new device. See Section 6.5.4.3.

6.5.3.7 Wallet Provider ensures User can verify they are using a trusted, certified Wallet Solution

According to the European Digital Identity Regulation, the User needs to be provided with a means to verify that they are installing or (after activation) are indeed using a trusted, certified Wallet Solution. The solution specified in this ARF to comply with this requirement is a Trust Mark view in the User interface of the Wallet Instance. When the User invokes this Trust Mark, it:

• renders the official Trust Mark graphics and/or logo,
• shows an informational text about Wallet Solution certification, localised for the User's device language, and
• provides web links to a list of certified Wallet Solutions, as well as to a web page containing certification information of User's Wallet Solution.

The information in the third bullet is hosted and managed dynamically by the European Commission. The Technical Specification 1 on the EUDI Wallet Trust Mark concentrates on defining the exact technical contents and the provisioning process to enable the User interface view rendering at the Wallet Instance. Topic 19 sets the high-level requirements for the Trust Mark as part of the Wallet Unit dashboard functionality. Topic 40 specifies what is required regarding the Trust Mark upon Wallet Unit activation and maintenance. Finally, Article 14a of CIR 2024/2979 and the Annexes mentioned therein specify detailed requirements for the formatting of the Trust Mark.

6.5.4 Wallet Unit management

6.5.4.1 Introduction

Starting from Wallet Unit activation and until the Wallet Instance is uninstalled by the User, a Wallet Unit is managed by the User and the Wallet Provider. The Wallet Provider is responsible at least to:

• update the Wallet Unit by installing new versions of the Wallet Solution on the User's device as necessary;
• update the KAs and WIAs in the Wallet Unit as necessary; see Sections 6.5.3.4 and 6.5.3.5.
• revoke the Wallet Unit when needed; see Section 6.5.4.2.
• ensure that the Wallet Provider cannot access the contents of the Wallet Unit, in particular to learn the value of any User attestations or attributes, as well as the contents of the transaction log kept by the Wallet Unit.
• support procedures for migrating the PIDs and attestations it contains to a different Wallet Solution. See Section 6.5.4.3

To allow Wallet Unit management, the following trust relations are established:

1. When contacting the Wallet Provider, for instance to request the revocation of the Wallet Unit, the User authenticates the Wallet Provider. This means the User is sure that they are visiting the website or the User portal of the genuine Wallet Provider who is responsible for the User's Wallet Unit, and not a spoofed website or portal. This risk can be partly mitigated by using standard mechanisms such as TLS server authentication. However, in addition the User will need to be vigilant as well, just as with any website on the internet.
2. When contacted by a User, the Wallet Provider authenticates the User. This means that the Wallet Provider is sure that the User is indeed the User that was associated with the Wallet Unit during activation. For this, the Wallet Provider uses the authentication methods established in the User's account during activation, see Section 6.5.3.
3. When the Wallet Unit and the Wallet Provider set up a communication channel, the Wallet Unit authenticates the Wallet Provider, meaning that the Wallet Unit is sure that it is dealing with the genuine Wallet Provider. Similarly, the Wallet Provider authenticates the Wallet Unit. This means that the Wallet Provider is sure that the EUDI Wallet Instance is indeed a true instance of their Wallet Solution, and not a fake app. This will be ensured by the Wallet Provider. The ARF does not specify how these trust relationships can be satisfied.
4. When contacted by a PID Provider to request Wallet Unit revocation, the Wallet Provider authenticates the PID Provider. Section 6.6.2.2 below describes how a Wallet Unit can do this during PID issuance; a Wallet Provider can use the same mechanism.

For high-level requirements regarding Wallet Instance management, see Topic 40, section C.

6.5.4.2 Wallet Unit revocation

The Wallet Provider will revoke the Wallet Unit at least in the following circumstances:

• If the User requests the Wallet Provider to revoke the Wallet Unit, for example in case of loss or theft of the User's device.
• If the Wallet Unit contains a PID, and the PID Provider requests the Wallet Provider to revoke the Wallet Unit because the natural person using the Wallet Unit has died. To identify the Wallet Unit that is to be revoked, the PID Provider uses a Wallet Instance identifier provided by the Wallet Unit in the WIA during PID issuance; see Topic 9. Note: This identifier is the URI and index to the Attestation Status List for WIAs; see Topic 7.
• If the security of the Wallet Unit is breached or compromised.
• If the Wallet Solution is suspended (optionally) or when it is withdrawn (mandatorily), see Section 4.6.3.
• If the Wallet Provider is invalidated by its Member State and (consequently) its status in the Wallet Provider LoTE is changed to Invalid. See Section 6.2.3

Regarding the detection of a security breach or compromise in an individual Wallet Unit, the Wallet Provider can use analysis mechanisms that allow continuous detection of changes in signals relevant to the security posture of the Wallet Instances it has deployed. These signals are discussed in Section 6.5.3.2.3. The Wallet Provider can potentially use a 4-level security posture framework as introduced in the table below.

Level	Posture status	Key indicators & checks	Wallet Provider policy response
Level 4	Critical	Confirmed Root/Jailbreak, Active Debugger/Emulator Detected, Private Key Compromised, Critical OS Vulnerability (unpatched) exploited, Wallet Instance integrity check failed (tampering detected), Use of a compromised WSCD-protected private key detected (see also Note 1).	Revoke Wallet Instance; revoke corresponding WSCD(s)/keystore(s). Force reinstallation of Wallet Instance on a vulnerability-free device before re-issuing KAs and WIAs.
Level 3	High Risk	High-risk, unpatched OS version detected, Failed biometric attempts exceeding high threshold, Unavailability of a local WSCA/WSCD due to repeated connection error or other errors.	Revoke Wallet Instance; revoke corresponding WSCD(s)/keystore(s). Require step-up authentication (e.g., PIN re-entry), or force re-activation of the Wallet Unit before re-issuing KAs and WIAs.
Level 2	Moderate Risk	Minor integrity checks failed (e.g., non-critical file modification), Wallet Instance running in background with high resource usage, Failed PIN attempts (low threshold).	Allow use, but limit scope (e.g., restrict high-value presentations), force User re-authentication after inactivity.
Level 1	Low Risk	Successful device attestation, Wallet Instance integrity check passed, Current OS patch level.	Full functionality allowed, including presentation of high-value attestations (PID/QEAA).

The Wallet Provider revokes a Wallet Unit by setting all indices of WIAs issued to the corresponding Wallet Instance in the relevant status list. In addition, depending on the cause, the Wallet Provider revokes a corresponding WSCD or keystore(s) by setting all indices of KAs describing that WSCA/WSCD or keystore in the relevant status list:

• If the Wallet Provider must revoke the entire Wallet Unit (for example by request of the User or a PID Provider, or because there is a security breach of the Wallet Instance or the OS of the User's device), then the Wallet Provider revokes the Wallet Instance.
• If there is a security breach of a (type of) WSCD, then the Wallet Provider revokes that WSCD. If only a single WSCD is breached, the Wallet Provider also revokes the Wallet Instance using it. If a type of WSCD is breached, the Wallet Provider also revokes all Wallet Instances using a WSCD of that type.
• If there is a security breach of a (type of) keystore, then the Wallet Provider revokes that keystore. The Wallet Provider also revokes the Wallet Instance(s) using that (type of) keystore, unless the Wallet Provider creates a risk analysis showing that not revoking these does not lead to unacceptable risks to the User, PID Providers and Attestation Providers, Relying Parties, or the Wallet Provider itself. If the Wallet Provider does not revoke the Wallet Instance(s), only the attestations bound to the revoked (type of) keystore will be impacted. Other functionalities of the Wallet Unit, including the presentation of a PID, will remain available to the User.

See Section 4.6.4 for the full state diagram of the Wallet Unit. See Section 6.6.2.5 and sections referenced there for explanations of how PID Providers, Attestation Providers, and Relying Parties deal with Wallet Unit revocation. See Topic 38 for high-level requirements on Wallet Unit revocation.

6.5.4.3 Migrating the PIDs and attestations in a Wallet Unit to a different Wallet Solution

Article 5a 4 (g) of the European Digital Identity Regulation ensures the User's rights to data portability. Data portability means that a User can migrate to a different Wallet Solution. The User installs an instance of the new Wallet Solution, and then wants to restore the PIDs and attestations in their existing Wallet Unit to their new Wallet Unit. This should be possible with as minimal an effort as possible, and independent of whether the User still has access to their existing Wallet Unit.

This section introduces a Migration Object in each Wallet Unit. This object is a list of PIDs and attestations contained in the Wallet Unit, together with the information needed to request (re-)issuance of that PID or attestation. In addition, the Migration Object also contains the transaction log kept by the Wallet Unit, see Section 6.6.3.13. The Migration Object does not contain any private keys of PIDs or device-bound attestations. In most security architectures for a Wallet Solution described in Section 4.5, this is impossible at least for PIDs, since the WSCA/WSCD that contains the PID private keys does not allow their extraction under any circumstances. An exception may be architectures in which PID private keys are managed in a remote HSM and the migration is to a new Wallet Unit of the same Wallet Provider. However, in such cases, restoring functionality of the PIDs in a new Wallet Unit does not necessitate that private keys are exported to another HSM. Rather, it implies the User must be able to authenticate towards the existing HSM from the new Wallet Unit, and be recognised as an existing User. For attestations bound to a keystore (rather than a WSCA/WSCD), the properties of the keystore determine if it's possible to export the attestation private keys to a location of the User's choosing. Most keystores will not allow this.

The fact that the Migration Object does not contain private keys means that PIDs and device-bound attestations cannot be backed up and restored from the object in such a way that they are usable in a new Wallet Unit without involvement of the PID Provider or Attestation Provider. Instead, the User must ask the respective PID Provider(s) or Attestation Provider(s) to issue the PID(s) or device-bound attestation(s) existing on the User's old Wallet Unit once again to the new Wallet Unit. The only function of the Migration Object is to simplify this process by listing the PIDs and attestations present in the existing Wallet Unit, together with the information needed by the new Wallet Unit to start the issuance process. For PIDs and device-bound attestations, the Migration Object does not contain attribute values or attribute identifiers, as that data is considered sensitive and is not useful anyway because of the limitations explained above. Instead, the object contains a list of attestation types and the related Attestation Providers.

For a non-device-bound attestation, there are no private keys stored in a WSCA/WSCD or keystore and hence it is in principle possible to back up such an attestation and restore it in a different Wallet Unit without involvement of the Attestation Provider. For non-device-bound attestations, the Migration Object therefore either contains the same data as for device-bound attestations, or it contains all data including attribute identifiers.

The Migration Object is stored in such a way that its confidentiality is ensured and that it can be used only by the User.

See Topic 34 for high-level requirements regarding migration.

The migration functionality of a Wallet Unit also enables backup and restore. Backup and restore is needed in case the User has lost access to their current Wallet Unit, for example in case of loss, theft, or breakdown. It is also needed if the User wants to start using another Wallet Unit, for example because they have bought a new device, need to factory-reset their existing device, or want to migrate to another Wallet Solution. In all of these cases, the User wants to restore the PIDs and attestations in their existing Wallet Unit on their new Wallet Unit, with as minimal an effort as possible.

The European Digital Identity Regulation does not contain a requirement mandating backup and restore functionality in the Wallet. However, Wallet Providers will implement backup and restore functionality nevertheless, because it will be expected by Users. In fact, the requirements in Topic 34 also ensure the possibility of backup and restore.

6.5.5 Wallet Instance uninstallation

No trust relationships are required for Wallet Instance uninstallation; anybody able to access the device of the User will be able to do this.

If the User uninstalls the Wallet Instance while it still contains PID(s) or attestation(s), the corresponding private keys will remain present in the respective WSCA/WSCD or keystore. This is because deletion of these private keys would require the Wallet Unit to authenticate the User, which is impossible if the Wallet Unit is being deleted by the device OS.

To partly solve this challenge, the Wallet Unit enables the User to 'factory reset' the Wallet Unit, which causes the deletion of all attestations, the log, and all other personal data, settings, and configurations from the Wallet Unit. If the User resets the Wallet Unit, the Wallet Instance request the associated WSCA/WSCD and keystore(s) to delete all cryptographic assets related to the Wallet Unit and to all PIDs and device-bound attestations on the Wallet Unit, if the WSCA/WSCD and keystore(s) are connected to the User device. The User can use this option, for instance, in preparation to the planned uninstallation of the Wallet Instance.

Notes:

• The Wallet Unit does not necessarily inform the Wallet Provider about the factory reset.
• It may happen there is no connection to the WSCA/WSCD or to a keystore at the moment the User resets the Wallet Unit. For instance, in case the WSCA/WSCD is an external smart card and the User does not present that card to the User device. Another example occurs when the WSCA/WSCD is a remote HSM and the User device is offline at that moment. In such cases, the cryptographic assets will remain present in the WSCA/WSCD or in the keystore, even though they will never be used again. If needed, it is up to the Wallet Provider to define how the Wallet Unit should handle such situations. For example, an HSM manager could address such cases by deciding to delete cryptographic keys in the HSM that are too old or haven't been used for too long, while being aware of the risks in doing so.

If the User resets the Wallet Unit, the Wallet Unit also discloses the fact that it no longer stores any previously disclosed PID(s) or attestation(s) to the W3C Digital Credentials API framework.

6.6 Trust throughout a PID or an attestation lifecycle

6.6.1 PID or attestation lifecycle

Section 4.6.6 above presented the lifecycle of a PID or attestation within a Wallet Unit:

1. Using their Wallet Unit, the User requests the issuance of a logical PID or attestation from a PID Provider or an Attestation Provider. This results in the Wallet Unit requesting one or multiple technical PIDs or attestations from that Provider. The required trust relationships for issuance are discussed in Section 6.6.2 below.
2. Once one or more technical PIDs or attestations are issued into the Wallet Unit, the User can present attributes from it to the following entities:
   • First of all, to a Relying Party Instance. Presentation happens according to the User's decision and depending on successful authentication of the Relying Party. The required trust relationships for presenting PIDs and attestations, including User approval and Relying Party authentication, are discussed in Section 6.6.3.
   • Instead of presenting attributes to a Relying Party, a User can also present them to another User, meaning that their Wallet Unit is interacting with another Wallet Unit. This is discussed in Section 6.6.4.
   • Finally, the User can also present attributes to an intermediary, who interacts with the Wallet Unit on behalf of a Relying Party. Section 6.6.5 discusses how presentation to an intermediary is different from presentation to a 'normal' Relying Party.
3. The PID Provider or the Attestation Provider remains responsible for management of the logical PID or attestation over its lifetime. Management may include re-issuing the corresponding technical PIDs or attestations with the same or different attribute values. The Provider can also revoke the PID or the attestation, possibly based on a request of the User. The management of PIDs and attestations is discussed in Section 6.6.6.
4. Finally, Section 6.6.7 discusses what happens if a User decides to delete a logical PID or attestation from their Wallet Unit.

6.6.2 PID or attestation issuance

6.6.2.1 Required trust relationships

The lifecycle of a PID or an attestation starts when a User, using their Wallet Unit, requests a PID Provider or an Attestation Provider to issue the PID or an attestation to their Wallet Unit. The following trust relationships are established during issuance:

1. The Wallet Unit authenticates the PID Provider or Attestation Provider using the access certificate referred to in Section 6.3. This ensures that the User can trust that the PID or attestation they are about to receive, is issued by an authenticated PID Provider or Attestation Provider respectively. See Section 6.6.2.2 below describing how this will be done.
2. The Wallet Unit verifies the PID Provider's or Attestation Provider's entitlements and registered attestation types. This ensure that the Provider has registered itself as either a PID Provider, a QEAA Provider, a PuB-EAA Provider, or a non-qualified EAA Provider, and has also registered the type(s) of attestations it issues. See Section 6.6.2.3 for more information.
3. If the above verifications pass, the Wallet Units sends an authorization request to the PID Provider or Attestation Provider. Subsequently, the PID Provider or Attestation Provider authenticates the Wallet Unit, see Section 6.6.2.4 below.
4. The PID Provider or Attestation Provider verifies that the Wallet Provider did not revoke the Wallet Unit. This is described in Section 6.6.2.5.
5. If necessary, the PID Provider or Attestation Provider authenticates the User, meaning that the Provider is sure about the identity of the User. In most use cases, this is necessary to enable determination of the values of the attributes that the Provider will attest to. For instance, a PID Provider needs to authenticate the User to ensure it provides a PID containing the correct family name and date of birth. In some use cases User authentication is not necessary; for example, when a shop owner issues a voucher or a receipt to a customer, the shop owner does not need to know who the customer is. The method by which the PID Provider or Attestation Provider performs User identification and authentication is out of scope of the ARF, as these processes are specific to each PID Provider or Attestation Provider. However, for a PID, these processes will satisfy the requirements for Level of Assurance High in Commission Implementing Regulation (EU) 2015/1502. For a QEAA, the User identification process will satisfy the reference standards laid down in CIR 2025/1566 on verification of the identity and attributes of the person to whom a qualified certificate or qualified electronic attestation of attributes is to be issued. For other attestations, user authentication is performed on a security level commensurate with the required level of security for the attestation issued.
6. After the PID or attestation is issued to the Wallet Unit, the Wallet Unit verifies the authenticity of the PID or attestation; see Section 6.6.2.6.
7. The User will activate a PID before they can use it; see Section 6.6.2.7.
8. If the OpenID4VCI Credential Issuer metadata for an attestation contains an embedded disclosure policy, the Wallet Unit retrieves the policy and stores it locally, so that it can apply the policy in case a Relying Party requests attributes from the attestation. See Section 6.6.2.8.

More detailed requirements for the issuance process of PIDs and attestations, for instance regarding the issuance protocol, are included in Topic 10.

6.6.2.2 Wallet Unit authenticates the PID Provider or Attestation Provider

To start the process of requesting a PID or an attestation, the User directs the Wallet Unit to contact the PID Provider or Attestation Provider at a service supply point. A service supply point is a system at which a Wallet Unit can start the process of requesting and obtaining a PID or attestation. The User may for example use the Wallet Unit to scan a QR code or tap an NFC tag to do so, or the Wallet Provider may configure each Wallet Unit with a pre-defined list of PID Providers and Attestation Providers, including the URLs of their service supply points and associated attestation type(s). Note that no centralised service discovery mechanism for PID or attestation issuance is foreseen.

Before requesting the issuance of a PID or an attestation, the Wallet Unit authenticates the PID Provider or the Attestation Provider. To do so, the Wallet Unit follows the same process as for authenticating a Relying Party, see Section 6.6.3.2, with the following differences:

• A PID Provider or Attestation Provider does not send it access certificate to the Wallet Unit in a request, but makes it available in its Credential Issuer metadata according to OpenID4VCI and ETSI TS 119 472-3.
• The PID Provider or Attestation Provider does not sign a request, but rather its Credential Issuer metadata.

The Wallet Unit verifies that the access certificate of the PID Provider or Attestation Provider is valid and authentic, and the signature over the metadata is valid. If this is not the case, the Wallet Unit warns the User that it could not verify the identity of the PID Provider or Attestation Provider, and does not request the issuance of a PID or attestation.

6.6.2.3 Wallet Unit verifies Provider's entitlements and registered attestation types

During registration, the PID Provider or Attestation Provider registered its entitlements, meaning whether it is a PID Provider, QEAA Provider, PuB-EAA Provider, or non-qualified EAA Provider; see Section 6.3.2. It also registered the type(s) of PID or attestation it intends to issue to Wallet Units. A Provider of registration certificates listed this information in one or more registration certificate(s) and sent these to the PID Provider or Attestation Provider. Subsequently, the PID Provider or Attestation Provider distributed the registration certificate(s) to its service supply points. Note that it is up to the PID Provider or Attestation Provider to determine if all of its supply points need all of the registration certificates, or that some supply points are used only for a subset of the attestation type(s) that this Provider issues, and consequently only need the registration certificates describing those attestation type(s). Each service supply point includes it registration certificate in its Credential Issuer metadata, similar to its access certificate; see the previous section.

The Wallet Unit obtains the registration certificate from the Credential Issuer metadata and verifies it. The Wallet Unit verifies that:

• the registration certificate is present and well-formed,
• the signature over the registration certificate can be verified using a trust anchor from the LoTE of Providers of registration certificates,
• the registration certificate has not expired and is not revoked,
• the registration certificate contains the same PID Provider or Attestation Provider identifier and the same Service identifier as the access certificate contained in the same Credential Issuer metadata. If that is not the case, a fraudulent entity could be using a registration certificate that was issued to a genuine PID Provider or Attestation Provider.

If any of these checks fail, the Wallet Unit warns the User that it could not obtain or validate the information registered about the PID Provider or Attestation Provider, and does not request the issuance of a PID or attestation.

If all of the above checks pass, the Wallet Unit retrieves from the registration certificate the entitlements and the list of attestations registered by the PID Provider or Attestation Provider. The Wallet Unit verifies that the entitlement (i.e., PID Provider, QEAA Provider, PuB-EAA Provider, or non-qualified EAA Provider) matches with its expectations, for example based on the the type of PID or attestation it wants to receive. Next, the Wallet Unit verifies that the type of attestation it wants to receive is included in the list of attestation types in the registration certificate. If one of these verifications comes out negative, the Wallet Unit warns the User and does not request the issuance of a PID or attestation.

Note: The requirement for Wallet Units to verify and validate registration certificates only applies as of 24 months after entry into force of the Regulation amending CIR 2024/2982.

For more information, see Topic 44.

6.6.2.4 PID Provider or Attestation Provider validates the Wallet Unit

6.6.2.4.1 Verifies the authenticity of the Wallet Unit

As shown in Figure 12, a PID Provider or an Attestation Provider downloads the Wallet Provider LoTE from the location published by the Commission. Note that for PID Providers it is not mandatory to possess the trust anchors of all Wallet Providers in the ecosystem. This is because it is not mandatory for a PID Provider to accept all certified Wallet Solutions. Each PID Provider will choose which trust anchors they need to trust. This is different for Attestation Providers: they must accept all Wallet Solutions and hence must possess all Wallet Provider trust anchors.

Section 6.5.3 above described that a Wallet Provider issues KAs and WIAs to the Wallet Unit. When the Wallet Unit requests the issuance of a PID or an attestation, it sends a WIA, and in most cases also a KA, to the PID Provider or the Attestation Provider. The PID Provider or Attestation Provider verifies the signature over the WIA and the KA, using the Wallet Provider trust anchor obtained from the Trusted List. This proves that the Wallet Unit is authentic and is provided by a trusted Wallet Provider. For more details see Topic 9 and Technical Specification 3.

6.6.2.4.2 Optionally, validates the properties of the WSCA/WSCD or the keystore

A key attestation (KA) describes the certifications and the other relevant properties of the WSCA/WSCD or a keystore. Because the WSCA/WSCD contains the private keys of the PID, the security level of the WSCA/WSCD is a key determinant for reaching the overall Level of Assurance (LoA) High, as required for the PID in the Wallet Unit. PID Providers therefore may want to validate a KA describing the WSCA/WSCD to verify that the WSCA/WSCD indeed complies with the requirements for Level of Assurance High.

For other device-bound attestations, the security of the attestation private keys is similarly important for guaranteeing the overall security of the attestation. The Attestation Provider decides on the required level of security for the keystore and indicates this in the Credential Issuer metadata specified in OpenID4VCI. The Wallet Unit selects the WSCA/WSCD or a keystore that complies with the required level of security, and sends a KA describing this WSCA/WSCD or keystore to the Attestation Provider. The Attestation Provider can validate the KA to verify that the WSCA/WSCD or keystore indeed complies with its security requirements.

For non-device-bound attestations, the Wallet Unit does not send a key attestation to the Attestation Provider.

6.6.2.4.3 Verifies that key for new PID or device-bound attestation is protected by the WSCD or keystore

Knowing the properties of the WSCA/WSCD or keystore is not very useful if the PID Provider or Attestation Provider cannot be sure that the private key for their new PID or device-bound attestation is indeed protected by that WSCA/WSCD or keystore. To enable this, each KA contains one or more public keys. By including these keys into a KA, the Wallet Provider attests that all of the associated private keys are indeed generated by and stored in the WSCA/WSCD or keystore described in the KA. The PID Provider or Attestation Provider can use each of these keys to bind a new PID or attestation to.

Apart from verifying the authenticity of the KA, the PID Provider or Attestation Provider also verifies that the KA is bound to the context of the PID or attestation issuance process. In other words, that it was not copied and replayed by an attacker. OpenID4VCI and Technical Specification 3 describe two methods for doing so. In both methods, during the issuance process, the PID Provider or Attestation Provider sends a nonce to the Wallet Unit. Subsequently it verifies that either

• The key attestation contains this nonce, meaning that the Wallet Provider signed it during the issuance process, or
• The Wallet Unit signed this nonce using the private key corresponding to one of the public keys in the key attestation, thereby proving possession of that key.

6.6.2.5 PID Provider or Attestation Provider verifies that Wallet Unit is not revoked

Section 6.5.3.4 and Section 6.5.3.5 above described that a Wallet Provider issues Key Attestations (KA) and Wallet Instance Attestations (WIA) to the Wallet Unit. Both a KA and a WIA contain revocation information. During the lifetime of the Wallet Unit, the Wallet Provider regularly verifies that the security of the Wallet Unit is not breached or compromised. If the Wallet Unit is no longer secure, the Wallet Provider revokes the Wallet Instance and, if the breach involves a WSCA/WSCD or keystore, revokes the corresponding KAs. The WIA and KA thus allow PID Providers and Attestation Providers to verify that the Wallet Unit is not revoked.

CIR 2024/2977 requires that PID Providers must verify regularly, during the entire lifetime of the PID, whether the Wallet Instance has been revoked (using the revocation information in the WIA received during PID issuance) and whether the WSCD or keystore has been revoked (using the revocation information in the KA received during PID issuance). If either the Wallet Instance or the WSCD or keystore has been revoked, the PID Provider must revoke the PID. This is possible because both the WIA and the KA have a revocation maintenance period, which is at least as long as the validity period of the PID. PID Providers also verify regularly whether the Wallet Provider has been suspended or cancelled in the associated LoTE. If any of these events happens, the PID Provider revokes the PID. Therefore, by verifying the revocation status of the PID, the Relying Party Instance implicitly verifies the revocation status of the Wallet Unit. See Technical Specification 3 for more information.

Attestation Providers can use the same mechanism as well, to provide the same assurance to Relying Parties, although this is not required by the CIR. See also Section 6.6.3.12.

Topic 38 describes Wallet Unit revocation in more detail.

Once it has done all verifications, the PID Provider or Attestation Provider will issue the PID or attestation to the Wallet Unit.

6.6.2.6 Wallet Unit verifies PID or attestation

After the Wallet Unit receives the PID or attestation, it will

• verify that the PID or attestation it received matches the request.
• verify the signature of the PID or attestation, using the appropriate trust anchor if available, in the same way as described for a Relying Party Instance in Section 6.6.3.6. Note that for a non-qualified attestation, the Wallet Unit may not be in possession of the necessary trust anchor.
• display the contents (i.e., attribute values) of the new PID or attestation to the User and request the User's approval for storing the new PID or attestation. When requesting approval, the Wallet Unit displays the contents of the PID or attestation to the User. The Wallet Unit also informs the User about the identity of the PID Provider or Attestation Provider, using the subject information from the PID Provider's or Attestation Provider's access certificate.

If any of these verifications fail, the Wallet Unit will delete the PID or attestation, and will inform the User that issuance was not successful. Otherwise, the Wallet Unit will store the PID or attestation and will inform the User that issuance was successful. The Wallet Unit will also disclose the fact that it contains the new PID or attestation to the W3C Digital Credentials API framework, see Section 4.4.3, unless the User has disabled such disclosure.

6.6.2.7 User activates the PID

Commission Implementing Regulation (EU) 2015/1502 requires that for an eID means on Level of Assurance High, an activation process is implemented to verify that the eID means was delivered only into the possession of the person to whom it belongs. In the context of the EUDI Wallet, this means that it must be verified that a PID is issued into the Wallet Unit of the PID subject. Note that activation is required only for PIDs, since the European Digital Identity Regulation only requires PIDs to be issued at LoA High.

PID Providers, in combination with Wallet Providers, have to ensure that the PID issuing process complies with this requirement, see also requirement ISSU_05 in Annex 2. During certification the responsible CAB decides whether the implemented process is indeed compliant.

The ARF does not specify a process or mechanism for PID activation. PID Providers and Wallet Providers are free to specify a suitable mechanism. Several options have been suggested, but others may be used as well:

1. Wallet Providers, PID Providers, and CABs could decide that no additional mechanism for PID activation is needed, if they conclude that existing mechanisms are sufficient to ensure that the new PID can only end up on the device used by the subject of the PID:
   • User authentication to the Wallet Unit that starts the request for PID issuance,
   • Mutual authentication and secure communication between the Wallet Unit and the PID Provider (as specified in OpenID4VCI), and
   • User authentication to the PID Provider as part of the PID issuance process, using an eID means on LoA High (or an eID means on LoA Substantial in conjunction with additional remote onboarding procedures, in accordance with article 5a.24 of the European Digital Identity Regulation).
2. Another option is to let the WSCA/WSCD perform identity matching during PID issuance. This would require that the Wallet Provider identifies the Wallet User and puts some identifying data, for instance User first and last name, in the WSCA/WSCD. Then, during PID issuance, the WSCA verifies that the data in the new PID match the data stored in the WSCA/WSCD.
3. A third option is to perform activation by using an activation code shared via a trusted channel. In this setup, the Wallet Provider would identify the Wallet User and store a random activation code in the WSCA/WSCD. The Wallet Provider would share the activation code with the relevant PID Provider, indicating the Wallet User's identity. During PID issuance, the PID Provider would retrieve the correct activation code and send the code to the PID subject's known address. To activate the PID, the PID subject (who is also the Wallet User) enters the code in the Wallet Instance.

Note that options 2 and 3 introduce a need for the Wallet Provider to identify the Wallet User. As explained in Section 6.5.3.6, this is not needed for any other purpose, and any implications for the privacy of the User need to be assessed. Also, these options require additional functionality of the Wallet Instance and the WSCA/WSCD, which would probably mean that PID activation can be done only for specific combinations of a Wallet Provider and a PID Provider. However, as pointed out in Section 6.5.2.3, this is allowed.

6.6.2.8 Provisioning embedded disclosure policies

6.6.2.8.1 Introduction

During attestation issuance, an Attestation Provider can optionally create an embedded disclosure policy for the attestation. If so, the Attestation Provider will provide it to Wallet Units during attestation issuance, by including it in the Credential Issuer metadata (defined in OpenID4VCI) for that attestation. Such an embedded disclosure policy contains rules determining which (types of) Relying Parties are allowed by the Attestation Provider to receive the attestation.

Note that the European Digital Identity Regulation does not contain a requirement for PIDs to be able to contain an embedded disclosure policy, but only for QEAAs and PuB-EAAs.

For more information regarding embedded disclosure policies, please refer to the Discussion Paper for Topic D.

6.6.2.8.2 Types of embedded disclosure policies

Annex III of CIR 2024/2979 defines the following common embedded disclosure policies that must be supported:

1. 'No policy' indicating that no policy applies to the electronic attestations of attributes.
2. 'Authorised relying parties only policy', indicating that wallet users may only disclose electronic attestations of attributes to authenticated relying parties which are explicitly listed in the disclosure policies.
3. 'Specific root of trust' indicating that wallet users should only disclose the specific electronic attestation of attributes to authenticated wallet-relying parties with wallet-relying party access certificates derived from a specific root (or list of specific roots) or intermediate certificate(s).

The first of these policies is the default and will be applied if the Attestation Provider does not provide an embedded disclosure policy for an attestation.

For expressing conditions on Relying Parties, an embedded disclosure policy will refer to information included in the registration certificate provided to the Wallet Unit by the Relying Party. Note that registration certificates are signed and hence the information they contain is authenticated. Moreover, each registration certificate is bound to the access certificate used by the Relying Party to authenticate itself towards the Wallet Unit. Therefore, the Wallet Unit can trust that the information in the registration certificate applies to the Relying Party that sends the presentation request.

Wallet Units will provide support for at least policies 2. and 3. above. Note that these policies apply on the level of attestations, not individual attributes.

6.6.2.8.3 Distributing embedded disclosure policies

An Attestation Provider will provide an embedded disclosure policy, if any, in the Credential Issuer metadata specified in OpenID4VCI. This does not require modifications to the attestation format. Embedded disclosure policies will be integrated directly into the metadata, rather than being "linked" using a URL and stored by the Attestation Provider. ETSI TS 119 472-3 specifies how these policies are expressed and how an Attestation Provider includes them in the Credential Issuer metadata.

The approach ensures that the Wallet Unit is not required to communicate with the Attestation Provider in order to be able to obtain and evaluate a policy for an attestation requested by a Relying Party. Instead, during issuance of an attestation, the Wallet Unit retrieves any relevant disclosure policy from the Credential Issuer metadata and stores it locally. A consequence of this approach is that an Attestation Provider will revoke an attestation if a relevant embedded disclosure policy is updated.

6.6.2.9 Batch issuance

Batch issuance means that instead of issuing a single technical PID or attestation to a Wallet Unit, a PID Provider or Attestation Provider issues a batch of them. All PIDs or attestations in a batch represent the same logical PID or attestation and have the same attestation type, attribute values and technical validity period. Apart from that, all of the descriptions in this section 6.6.2 apply regardless of the number of attestations issued (single or batch).

Batch issuance is discussed in more detail in the Discussion Paper for Topic B.

6.6.3 PID or attestation presentation to a Relying Party

6.6.3.1 Required trust relationships

A Relying Party can request a User to present some attributes from a PID or from an attestation in their Wallet Unit. Figure 12 shows that a Relying Party uses a Relying Party Instance to interact with the Wallet Unit of the User. The relationship between the Relying Party and their Relying Party Instance is similar to the relationship between the User and their Wallet Unit.

When processing the request, the following trust relationships are established:

1. The Wallet Unit authenticates the Relying Party Instance, ensuring the User about the Relying Party's identity. Section 6.6.3.2 explains how this will be done.
2. The Wallet Unit verifies that the Relying Party does not request more attributes than it has registered for, and informs the User about the outcome of this verification. See Section 6.6.3.3 for more information.
3. The Attestation Provider, during issuance, may optionally embedded a disclosure policy in the attestation. If such a policy is present for the requested attestation, the Wallet Unit evaluates the disclosure policy and informs the User about the outcome of this evaluation. See Section 6.6.3.4.
4. The User approves or rejects the presentation of the requested attributes. User approval and selective disclosure are described in Section 6.6.3.5. Subsequently, after the Wallet Unit presents the selected attributes from the PID or attestation to the Relying Party Instance by sending a response to the request, the Relying Party validates the response. The following trust relationships are established:
5. The Relying Party Instance verifies the signature of the PID or attestation. This ensures that the Relying Party can trust that the PID or attestation it receives is issued by an authentic Provider and has not been changed. This is described in Section 6.6.3.6.
6. The Relying Party verifies that the PID Provider or Attestation Provider did not revoke the PID or attestation. This is described in Section 6.6.3.7.
7. For PIDs and device-bound attestations, the Relying Party verifies that the PID Provider or Attestation Provider issued this PID or attestation to the same Wallet Unit that presented it to the Relying Party. In other words, it checks that the PID or attestation was not copied or replayed. This is generally called device binding, and it is discussed in Section 6.6.3.8.
8. In some use cases, the Relying Party verifies that the person presenting the PID or attestation is the User to whom the PID or the attestation was issued. This is called User binding. In other use cases, the Relying Party trusts that the Wallet Unit and/or the WSCA/WSCD have done this check. User binding is discussed in Section 6.6.3.9.
9. The Relying Party can request attributes from two or more attestations in the same interaction. This is called a combined presentation of attributes. If so, the Relying Party verifies that these attestations belong to the same User. This is discussed in Section 6.6.3.10.
10. Finally, after the interaction with the Relying Party Instance is over, the Wallet Unit enables the User to report unlawful or suspicious requests for personal data by a Relying Party, based on information logged by the Wallet Unit. In addition, the Wallet Unit enables the User to send a request to a Relying Party to delete personal data (i.e., User attributes) obtained from the Wallet Unit. This is discussed in Section 6.6.3.13.

6.6.3.2 Wallet Unit authenticates the Relying Party Instance

Relying Party authentication is a process whereby a Relying Party proves its identity to a Wallet Unit, in the context of an interaction in which the Relying Party requests the Wallet Unit to present some attributes.

Relying Party authentication is included in the protocol used by a Wallet Unit and a Relying Party Instance to communicate. As documented in Topic 12, at least two different protocols can be used within the EUDI Wallet ecosystem, namely the ones specified in ISO/IEC 18013-5 and OpenID4VP. Both protocols include functionality allowing the Wallet Unit to authenticate the Relying Party Instance. Although these protocols differ in the details, on a high level, they both implement Relying Party authentication as shown in Figure 13 below.

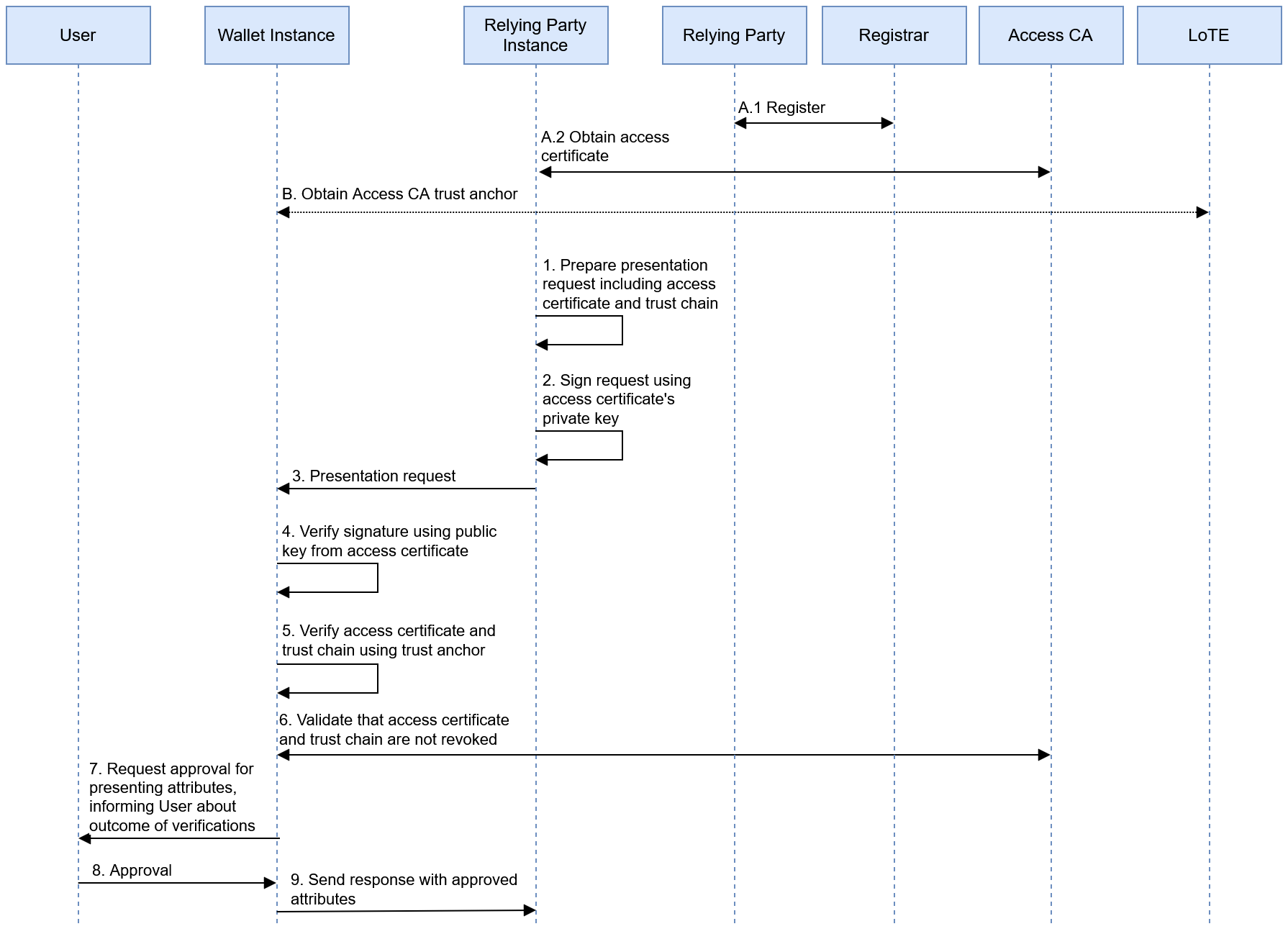

Figure 13 High-level overview of Relying Party authentication process

The figure shows the following:

First, there are two preconditions that need to be fulfilled before the Relying Party authentication process can begin. Note that these actions are not carried out for every presentation, but only once (excluding possible updates):

A) The Relying Party registered itself with a Registrar in its Member State, as described in Section 6.4.2, and obtained one or more access certificate for each of its Relying Party Instances from an Access Certificate Authority (See Section 3.18) associated with the Registrar.

B) The Wallet Unit obtained the trust anchor of the Access Certificate Authority from the respective List of Trusted Entities (LoTE, see Section 3.5).

Subsequently, during each presentation of attributes:

1. The Relying Party Instance prepares a request for some attributes to the Wallet Unit and includes its access certificate in the request, plus all intermediate certificates up to (but excluding) the trust anchor.
2. The Relying Party Instance signs some data in the attribute request using its private key.
3. The Relying Party Instance sends the request to the Wallet Unit.
4. The Wallet Unit checks the authenticity of the request by verifying the signature over the request using the public key in the access certificate.
5. The Wallet Unit checks the authenticity of the Relying Party by validating the access certificate and all intermediate certificates included in the request. For validating the last intermediate certificate, the Wallet Unit uses the trust anchor it obtained from the LoTE in step B above.
6. The Wallet Unit validates that none of the certificates in the trust chain have been revoked. This includes the access certificate as well as all other certificates in the trust chain, including the trust anchor itself if applicable. For revocation checking, the Wallet Unit uses the standard CRL or OCSP mechanisms, as specified in RFC 5280, ETSI TS 119 411-8, and in the Certification Practices Statement of the Access CA. For offline revocation checking, a Wallet Unit caches the CRLs of all Access Certificate Authorities.
7. The Wallet Unit continues by requesting the User for approval.
8. The User approves the attributes that will be presented.
9. The Wallet Unit sends a response containing only the approved attributes to the Relying Party Instance.

If Relying Party authentication fails for any reason (in steps 4. - 6.), the Wallet Unit notifies the User. In addition, the Wallet Unit either does not present the requested attributes to the Relying Party, or gives the User the choice to present the requested attributes or not. It is up to the Wallet Provider to make a choice for one of these two options, considering the precise reason for which authentication failed. To give some examples:

• If the signature over the request is not valid, the Wallet Unit will likely stop the transaction, since this may point to a man-in-the-middle attack or another serious security issue.
• Similarly, if the access certificate chain cannot be verified using a trust anchor from the Access Certificate Authority LoTE, the Wallet Unit will stop the transaction, because the Relying Party may be using a fake access certificate.
• If the Wallet Unit cannot verify the revocation status of the access certificate or another certificate because no sufficiently fresh revocation information is available, it is up to the Wallet Provider to decide to continue the transaction (by asking for User approval) or to stop it, perhaps taking into account the sensitivity of the requested attributes.
• If there is some minor error in the format of the (properly signed) access certificate, the Wallet Unit will continue the transaction, if there are no associated security risks.

For more information on Relying Party authentication, please refer to Topic 6.

6.6.3.3 Wallet Unit verifies that Relying Party does not request more attributes than it registered

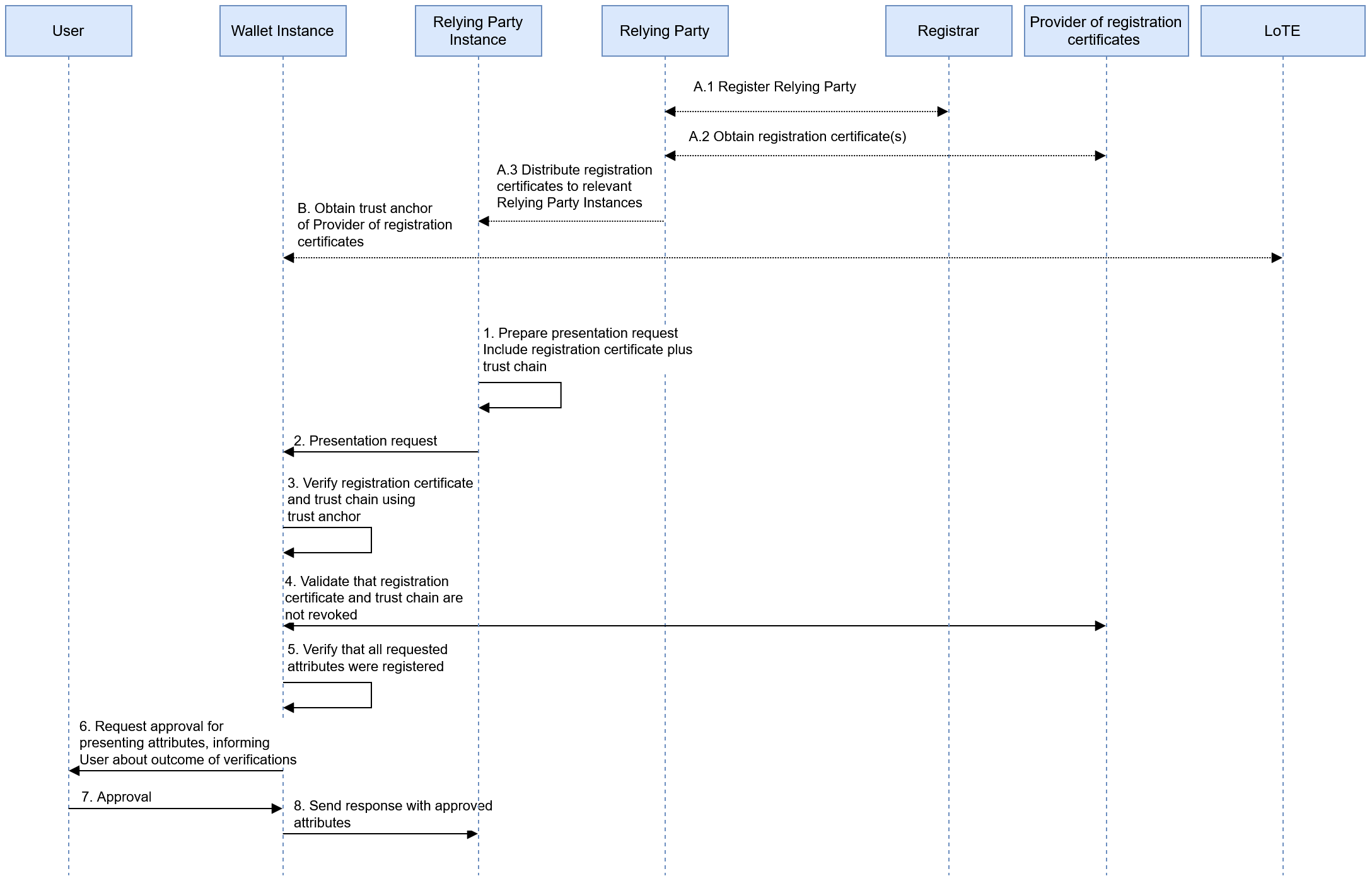

Figure 14 shows how a Wallet Unit verifies that the Relying Party properly registered all attributes it request in the presentation request.

Figure 14 High-level overview of registration certificate verification process

First, there are two preconditions that need to be fulfilled before the verification process can begin. Note that these actions are not carried out for every presentation, but only once (excluding possible updates):

A) During registration, the Relying Party registered which attributes it intends to request from Wallet Units for each of the services (intended uses) it has; see Section 6.4.2. The Registrar ensured that an associated Provider of registration certificates listed these attributes in a separate registration certificate for each intended use and sent it to the Relying Party. Subsequently, the Relying Party distributed the registration certificates it received to its Relying Party Instances. Note that it is up to the Relying Party to determine if all of its Relying Party Instances need all of the registration certificates, or that some Relying Party Instances are used only for a subset of the Relying Party's intended uses, and consequently only need the registration certificates describing those intended uses.

B) The Wallet Unit obtained the trust anchor of the Provider of registration certificates from the respective List of Trusted Entities (LoTE, see Section 3.5).

Subsequently, during each presentation of attributes:

1. The Relying Party Instance prepares a presentation request and includes a single registration certificate pertaining to the intended use of the request. Note that a single intended use may cover multiple attributes from multiple attestations. For example, a Relying Party selling alcoholic beverages online may register that for this intended use they will request an age verification attribute from the PID and a User address from some other attestation. However, if a Relying Party really has multiple intended uses for interacting with a Wallet Unit, it needs to send multiple presentation requests, each including the relevant registration certificate. to the Wallet Unit
2. The Relying Party Instance sends the request to the Wallet Unit.

3. The Wallet Unit verifies the registration certificate. The Wallet Unit verifies that:

   • the registration certificate is present and well-formed,
   • the signature over the registration certificate can be verified using a trust anchor from the LoTE of Providers of registration certificates,
   • the registration certificate contains the same Relying Party identifier and Service identifier as the access certificate contained in the same presentation request. If that is not the case, a fraudulent Relying Party could be using a registration certificate that was issued to another Relying Party. Note that there two different ways in which this condition can be fulfilled:
   • Either the access certificate and the registration certificate were issued to the same Relying Party, in which the subject fields of both certificates contain the same set of identifiers,
   • Or the access certificate was issued to an intermediary (see Section 6.6.5), and the registration certificate indicates that the intermediated Relying Party uses the services of this intermediary, by including the Relying Party identifier and Service identifier of the intermediary in a usesIntermediary field according to Technical Specification 5. 1. The Wallet Unit verifies that the registration certificate has not expired and is not revoked.

   In case any of the checks in point 3. and 4. fail, the Wallet Unit warns the User, when asking the User for approval, see Section 6.6.3.5, that it could not obtain or validate the information registered about the Relying Party. In addition, it is up to the Wallet Provider to determine, based on its risk analysis and security policy, whether and under which conditions the User may approve (or reject) the presentation of attributes despite specific failed validation checks. Moreover, any User approval must be explicit; silence or pre-ticked boxes do not suffice.

4. If all of the above checks pass, the Wallet Unit retrieves from the registration certificate the list of attributes registered by the Relying Party. The Wallet Unit compares this list to the attributes that the Relying Party requests in the presentation request. In case the Relying Party requested some attributes that are not included in the registration certificate, the Wallet Unit warns the User that the Relying Party is requesting more information than it has registered. The Wallet Unit does so when asking the User for approval, see step 6. and Section 6.6.3.5. In addition, it is up to the Wallet Provider to determine, based on its risk analysis, security policy, and applicable law, whether the Wallet Unit must

   • enable the User to approve (or reject) the presentation of all requested attributes, including the non-registered ones,
   • enable the User to approve (or reject) the presentation of the registered attributes only, or
   • reject the presentation of all requested attributes.

   Moreover, any User approval must be explicit; silence or pre-ticked boxes do not suffice. 1. The Wallet Unit informs the User about the outcome of the above verifications and requests approval for presenting the requested attributes. 1. The User approves the attributes that will be presented. 1. The Wallet Unit sends a response containing only the approved attributes to the Relying Party Instance.

Notes: - The requirement for Wallet Units to verify and validate registration certificates only applies as of 24 months after entry into force of the Regulation amending CIR 2024/2982. - The process and verifications describe above ensure that Wallet Providers comply with the 'general access policy' described in CIR 2025/848.

For more information, see Topic 44.

6.6.3.4 Wallet Unit evaluates embedded disclosure policy, if present

During attestation issuance, an Attestation Provider optionally created an embedded disclosure policy for the attestation, see Section 6.6.2.8. If such a policy is present for the requested attestation, the Wallet Unit evaluates the policy, together with information in the registration certificate, to determine whether the Attestation Provider allows this Relying Party to receive the requested attestation. Note that the Wallet Unit verifies the authenticity of the registration certificate before using any data contained in it.

The Wallet Unit presents the outcome of the disclosure policy evaluation to the User when requesting User approval, see Section 6.6.3.5.7.

For more details on the embedded disclosure policy, see Topic 43.

6.6.3.5 Wallet Unit obtains User approval for presenting selected attributes

6.6.3.5.1 Introduction

Note: In this document the term 'User approval' exclusively refers to a User's decision to present an attribute to a Relying Party. Under no circumstances User approval to present data from their Wallet Unit should be construed as lawful grounds for the processing of personal data by the Relying Party or any other entity. A Relying Party requesting or processing personal data from a Wallet Unit must ensure that it has grounds for lawful processing of that data, according to Article 6 of Regulation (EU) 2016/679 (the GDPR).

Before presenting any attribute to a Relying Party, the Wallet Unit requests the User for their approval. This is critical for ensuring that the User remains in control of their attributes.

A Wallet Unit requests User approval in all use cases, both in proximity flow and remote flow, and including:

• Use cases where the Relying Party could be assumed to be trusted, for example, when the Relying Party is part of law enforcement or another government agency.
• Use cases where the requested attributes are critical for the Relying Party to grant access to the User or deliver the requested services.
• Use cases where there is, according to the GDPR or other legislation, no legal need to ask for the User's approval because another legal basis exists for requesting the attributes.

A number of conditions must be fulfilled for effective User approval:

1. The Wallet Unit authenticated the User; see Section 6.6.3.5.2,
2. The Wallet Unit informed the User about the identity of the Relying Party and about the identity of the intermediary, if applicable; see Section 6.6.3.5.3,
3. The Wallet Unit informed the User about the attributes the Relying Party requested; see Section 6.6.3.5.4,
4. The Wallet Unit informed the User about the Relying Party's intended use and privacy policy for these attributes; see Section 6.6.3.5.5,
5. The Wallet Unit informed the User about the outcome of the evaluation of the requested attributes; see Section 6.6.3.5.6,
6. The Wallet Unit informed the User about the outcome of the evaluation of the embedded disclosure policy, if any; see Section 6.6.3.5.7,
7. The Wallet Unit enables the User to approve or deny the requested attributes; see Section 6.6.3.5.8.

These conditions are further discussed in the next subsections. After the User gives their approval, the Wallet Unit will present the approved User attributes to the Relying Party Instance.

High-level requirements regarding User approval can be found in Topic 6

6.6.3.5.2 Wallet Unit authenticates the User

A prerequisite for requesting User approval is that the Wallet Unit is sure that the person using the Wallet Unit (and giving the approval) is in fact the User. Therefore, the Wallet Unit authenticates the User prior to or during requesting User approval, on request of the Wallet Unit. To do so, the Wallet Unit uses one of the User authentication mechanisms set up during Wallet Unit activation, see Section 6.5.3.3.

6.6.3.5.3 Wallet Unit informs the User about the identity of the Relying Party

In order to be able to give approval, a User needs to be informed about the identity of the Relying Party. The Wallet Unit displays to the User the User-friendly Relying Party trade name and Service trade name. The Wallet Unit obtains this information from the registration certificate presented by the Relying Party Instance.

If the Relying Party uses an intermediary, the Wallet Unit does not inform the User about the trade names of the intermediary and its Service during the transaction; see Section 6.6.5. However, it does log the intermediary's trade names in the transaction log. The Wallet Unit finds the trade names of the intermediary in the access certificate presented by the Relying Party Instance, whereas it obtains the trade names of the intermediated Relying Party from the registration certificate.

6.6.3.5.4 Wallet Unit informs the User about the attributes the Relying Party requested

In order to be able to give approval, a User also needs to know which attributes the Relying Party wishes to receive. Note that a Relying Party may request attributes from multiple attestations in a single request; for example information from a diploma and from a PID.

In case a Relying Party requests the presentation of the portrait in a PID, the Wallet Unit warns the User that the request involves the presentation of biometric data. The Wallet Unit then ensures that User approval for presenting the portrait is explicit; silence or a pre-ticked box do not suffice.

6.6.3.5.5 Wallet Unit informs the User about the Relying Party's intended use and privacy policy

According to the GDPR, a User must be informed about the Relying Party's intended use for the requested attributes. For each presentation request, the Relying Party can have only one intended use. If the Relying Party has multiple intended uses for requesting attributes from a Wallet Unit, it needs to send multiple presentation requests. In such a case, the Wallet Unit will request the User for their approval multiple times.

The registration certificate sent by the Relying Party Instance to the Wallet Unit contains a User-friendly description of the Relying Party's intended use, as well as a URL to the applicable privacy policy of the Relying Party. The Wallet Unit displays this information to the User.

6.6.3.5.6 Wallet Unit informs the User about the outcome of the evaluation of the requested attributes

Section 6.6.3.3 above described how the Wallet Unit can verify the attributes requested by the Relying Party against the attributes that the Relying Party registered for the given intended use. If the outcome is negative, the Wallet Unit will inform the User that this is the case. For example, "\<Relying Party name> requested \<attribute1>, but it did not register this attribute. Do you want to continue?" Note that it is up to the Wallet Provider to decide if the User can overrule a negative outcome of this verification and decide to approve the request.

6.6.3.5.7 Wallet Unit informs the User about the outcome of the evaluation of the embedded disclosure policy

Section 6.6.3.4 above described that an Attestation Provider can add an embedded disclosure policy for an attestation. It also described how a Wallet Unit can evaluate such a policy. The Wallet Unit presents the outcome of the disclosure policy evaluation to the User when asking for User approval. For example, "The issuer of your \<attestation name> does not want you to present data to \<Relying Party name>. Do you want to continue?" Note that the User can overrule a negative outcome of the disclosure policy evaluation and decide to approve the request.

6.6.3.5.8 Wallet Unit enables the User to approve or deny the requested attributes

After presenting all of the above information to the User, the Wallet Unit enables the User to approve or deny the requested attributes. Preferably, the User gives approval either to present all attributes requested, or none of them. This is because partial approval would mean that the Relying Party cannot deliver the service, but nevertheless receives some User attributes. This would be a violation of the User's privacy. Note that a Relying Party is not allowed to request more data than is justified for the intended use. Therefore, if the User feels that the Relying Party is actually requesting more data than needed, that implies that the Relying Party is not trustworthy. The User will probably not approve the presentation of any data in that case.

The Wallet Unit will present all approved User attributes, and only these, to the Relying Party Instance.

6.6.3.6 Relying Party Instance verifies the authenticity of the PID or attestation

The Relying Party Instance receives a PID or attestation, including some attributes, from the Wallet Unit. Subsequently, it verifies the signature over the PID or attestation. To do this for PIDs, QEAAs, and PuB-EAAs, the Relying Party Instance uses a trust anchor of the Provider obtained from a LoTE or Trusted List. Note that the Provider may use an intermediate signing certificate to sign the PID or attestation, and use the trust anchor to sign the signing certificate, instead of signing the PID or attestation directly with the trust anchor.

For non-qualified EAAs, the applicable Rulebook may describe how the Relying Party Instance obtains the relevant trust anchor.

The above implies that a Relying Party Instance is aware whether the attestation it is requesting from a Wallet Instance is a PID, a QEAA, a PuB-EAA, or a non-qualified EAA. Also, the Relying Party Instance stores trust anchors in such a way that, at the time of verification, it is able to distinguish between trust anchors usable either for PIDs, for QEAAs, for PuB-EAAs, or for non-qualified EAAs.

A Relying Party performs regular trust anchor management. It downloads the latest version of all applicable Trusted Lists and LoTEs. If if finds that new trusted entities have been added, or that new trust anchors have been added for existing trusted entities, it ensures that these trust anchors are properly stored in all relevant Relying Party Instances. Conversely, if the Relying Party finds that an existing trusted entity has been invalidated in the Trusted List or LoTE, or that some of the trust anchors of existing trusted entities have expired, been revoked, or otherwise been invalidated, it ensures that these trust anchors are removed from all Relying Party Instances.

The technical implementation of the signature verification process depends on which of the standards mentioned in Topic 12 is supported by the Wallet Unit. Each of these standards specifies in detail how to carry out signature verification.

In addition, the Relying Party may want to verify that the Attestation Provider is registered to issue the type of attestation in question, as described in Section 6.3.2.3.

Notes:

• All PIDs and attestations in the EUDI Wallet ecosystem are digitally signed by the respective PID Provider or Attestation Provider. All attributes in a PID will be included in that signature; these are called issuer-signed attributes. In addition, Attestation Providers can enable the WSCA/WSCD or a keystore in the Wallet Unit to sign attributes itself, using the private key associated with the public key in an attestation. Such attributes are called device-signed or self-issued attributes. This possibility is used primarily by SUA attestations for signing transactional data; see Section 2.6.4. The Attestation Rulebook for a specific type of attestation specifies the device-signed (self-issued) attributes that may be present in that attestation, if any. PIDs are not allowed to contain device-signed attributes; this implies that PIDs cannot be used to sign transactional data.

6.6.3.7 Relying Party verifies that the PID or attestation is not revoked

To allow revocation checking of a PID or attestation, the PID Provider or Attestation Provider includes revocation information in the PID or attestation, if it is valid for longer than 24 hours. This revocation information includes a URL indicating the location where a Relying Party can obtain a status list or revocation list, and an identifier or index for this specific certificate or attestation within that list.

Notes:

• For attestations with a validity period of less than 24 hours, including revocation information is not necessary.
• A status list is a bit string or byte string in which each bit or group of bits denotes the current revocation status (valid or revoked) of one attestation. To get the status of the attestation it has received from the Wallet Unit, the Relying Party obtains the status list from the URL specified in the attestation and verifies the value encoded at the bit position given by the index value in the attestation. For more information, see Token Status List.
• A revocation list is a list of PID identifiers or attestation identifiers revoked by the PID Provider or Attestation Provider. To get the status of the PID or attestation it has received from the Wallet Unit, the Relying Party obtains the revocation list from the URL specified in the attestation and verifies whether the identifier included in the attestation is on the list or not. For more information, see the (draft) second edition of ISO/IEC 18013-5, available on the GitHub repository of the responsible ISO Working Group.
• In some cases, no reliable information regarding the revocation status of a PID or attestation will be available, for example in case a Relying Party Instance is offline and does not have access to a cached status list or revocation list, or if the requested attestation is non-qualified and the responsible Attestation Provider choose to not have a revocation service for the attestation. In such a case, a Relying Party performs a risk analysis considering all relevant factors for the use case, before taking a decision to accept or refuse the PID or attestation.
• It is recommended but not mandatory for a Relying Party Instance to verify the revocation status of a PID or attestation.

For more details and requirements on revocation, see Topic 7. See also Section 6.6.6.4.

6.6.3.8 Relying Party Instance verifies device binding

Device binding is the cryptographic link that ensures a PID or attestation belongs exclusively to the WSCD or to a keystore in the User's Wallet Unit. This key property prevents copying or cloning, significantly boosting the attestation's security. Device binding is also a prerequisite for User binding, allowing the Relying Party to trust the Wallet Unit's internal User authentication mechanisms to verify the presenter is the rightful User.

Within the EUDI Wallet ecosystem, implementing device binding is mandatory for PIDs, since PIDs must be managed at Level of Assurance High, which is impossible without device binding to a WSCA/WSCD. It is also mandatory for attestations complying with ISO/IEC 18013-5, due to the fact that this is required in that standard. For SD-JWT VC-compliant attestations, implementing device binding is recommended but not mandatory. However, note that OpenID4VP enables the Relying Party to indicate if it wants to receive a proof of device binding for a requested attestations, via the require_cryptographic_holder_binding parameter in the request. It also stipulates that a Wallet Unit cannot return a non-device-bound attestation in case the Relying Party requests such a proof.

A PID Provider or an Attestation Provider can implement device binding by including a cryptographic public key in the PID or attestation and signing it. The corresponding private key is protected by the WSCA/WSCD or keystore in the Wallet Unit.

A WSCA/WSCD or keystore generates a public-private key pair for each PID and device-bound attestation upon request of the Wallet Unit. The Wallet Unit sends the public key to the PID Provider or Attestation Provider.

After receiving a presentation response, the Relying Party Instance may verify that a PID or device-bound attestation it received from a Wallet Unit is indeed bound to the WSCA/WSCD or keystore included in the Wallet Unit. The Relying Party Instance does so by requesting the Wallet Unit to sign some (pseudo-)random data provided by the Relying Party, using the private key corresponding to the public key in the PID or attestation. For this reason, device binding is also called 'proof of possession'. In ISO/IEC 18013-5 it is called 'mdoc authentication'. In SD-JWT VC it is called 'key binding'. Note that it is recommended but not mandatory for a Relying Party Instance to verify the device binding signature in the presentation response, if present.

The technical implementation of this verification depends on which of the standards mentioned in Topic 12 is supported by the Wallet Unit. Each of these standards specifies in detail how to carry out this verification.

The data signed by the Wallet Unit may include (a representation of) some transactional data which the Relying Party included in the presentation request, see Section 5.7.5. Note that neither ISO/IEC 18013-5 nor OpenID4VP or SD-JWT VC specify the full syntax and semantics of the transactional data. Nor do these standards specify how a Wallet Unit processes this data, or how it is presented to the User prior to being signed. All of these aspects will need to be specified in the Attestation Rulebook or Technical Specification for the type of attestation that is being requested in the presentation request.

6.6.3.9 Relying Party Instance verifies or trusts User binding

User binding (sometimes also called 'holder binding') is the property that the person that presents the PID or attestation to the Relying Party is in fact the User to whom the PID or the attestation was issued. User binding prevents an attacker from successfully presenting a PID or an attestation that they are not legally allowed to use.

The mechanism(s) available for User binding depend on the presentation flow type (proximity or remote, supervised or unsupervised, see also Section 4.4), and on the attributes issued to the User by the PID Provider or Attestation Provider:

1. In the first place, for PIDs and device-bound attestations the Relying Party can always decide to trust the User authentication mechanisms implemented by the Wallet Unit (see Section 6.5.3.3). This means that the Relying Party trusts that the User device or the WSCA/WSCD has properly authenticated the User before allowing the User to present the attributes. Note that:

   • This trust is not based on the outcome of any verification by the Relying Party itself, but on a a-priori trust in the certified Wallet Unit and (for PIDs and attestations with a security level High) the certified WSCA/WSCD.
   • Using this method implies that Relying Parties must verify device binding, as described in Section 6.6.3.8. The Relying Party Instance in fact first verifies that the PID or attestation is bound to the Wallet Unit (i.e., to a WSCA/WSCD or keystore attested in a KA), and then trusts that the Wallet Unit has authenticated the User.
   • As a matter of fact, this User binding method will always be carried out, since the Wallet Unit (and for PIDs additionally the WSCA/WSCD) must authenticate the User before it can present a PID or attestation, see Section 6.5.3.3.

2. In addition, in some cases, if a Relying Party does not want to only trust the User authentication mechanisms of the Wallet Unit, it may be able to use User attributes to carry out an additional User binding process. For example, if the PID or attestation contains a User portrait, the Relying Party may be able to visually compare that portrait to the face of the person presenting the attestation, or do a biometrical matching to a photo taken of that face by an automated machine or as a "selfie". This will generally be possible in supervised proximity presentations by human inspection, or in an unsupervised proximity flow if equipped with the appropriate equipment. It may also be possible to do this in unsupervised remote presentations by using face recognition technology, possibly even remotely. However, to generate trustworthy outcomes in such situations, special conditions and dedicated security measures are required, such as good lighting, clear instructions for the User for positioning their face and an approved liveness detection mechanism supporting Presentation Attacks Detection (PAD), as well as mechanisms for injection attack detection, in particular deepfake detection.

3. Lastly, if the person presenting the PID or attestation is able to present an identity document, the Relying Party may be able to verify User binding by comparing attributes from the PID or attestation, such as first and last name, to those in the identity document. However, this requires that the Relying Party can verify that the identity document is authentic and really belongs to the person presenting it. In practice this will often mean that the identity document is a photo ID, and the presentation must consequently be done in proximity and be supervised, or done remotely and supported by PAD.

6.6.3.10 Relying Party Instance verifies combined presentation of attributes

6.6.3.10.1 Introduction

According to the European Digital Identity Regulation, a combined presentation of attributes is a request for attributes from two or more attestations in the same action. Scenarios where a User is asked to present different attributes from various physical documents are common in the real world, and are also relevant in the digital domain. Several examples, including university admissions, professional licencing, and rental or loan applications, are discussed in the Discussion Paper for Topic K. These scenarios can be addressed more efficiently through combined presentation, allowing a Relying Party to receive a consolidated set of attributes from different attestations.

In such cases, the Relying Party will need to verify that these attestations belong to the same User. This can be done in different ways, including (but not necessarily limited to):

• Presentation-Based Binding: A Relying Party may assume that attributes presented in a single presentation response belong to the same User. However, this means that the Relying Party trusts that the Wallet Instance that created the response is not hacked or fraudulent. In some high-security use cases, such trust may not be warranted.
• Attribute-Based Binding: Multiple attestations may include a shared unique identifier (e.g., a PID number), which can then serve as a binding reference across different attestations. Another possibility is the use of the same identifying data, such as full name and date of birth, in multiple attestations, which can be used to relate attestations to each other and to a User. This is analogous to many present-day processes using paper documents, which may be seen as an advantage. However, this method implies that identifying data of the User must be presented even in use cases where this is not necessary for the purposes of the use case itself. Moreover, this method may not be conclusive, for instance if multiple people share the same name.
• Cryptographic Binding: The WSCA/WSCD or a keystore in the Wallet Unit may generate a cryptographic proof demonstrating that it manages the private keys associated with all of the involved PIDs and device-bound attestations. Since the WSCA/WSCD or keystore complies with (much) higher security requirements than the device OS does, such a solution is more secure than presentation-based binding. To a lesser extent, this also applies for keystores. Cryptographic binding is more privacy-preserving than attribute-based binding, since no attributes other than those strictly necessary for the use case have to be presented.

Cryptographic binding of attestations is discussed in the next section.

6.6.3.10.2 Cryptographic binding between attestations

Cryptographic binding between attestations is an envisioned cryptographic mechanism that enables a WSCA/WSCD or keystore to prove that it manages the private keys corresponding to two (or more) public keys. A proof of cryptographic binding between attestations can be used during attestation presentation, e.g., to prove that the public keys associated with two (or more) device-bound attestations are managed by the same WSCA/WSCD or keystore and that, therefore, these attestations belong to the same User.

When designed with privacy in mind, cryptographic binding between attestations becomes a powerful tool for protecting individuals from unnecessary exposure. Rather than relying on full User identification for each presented attestation, for instance by requesting the User's name from each of them, a Relying Party can instead implement solutions that enable Users to prove only what is strictly necessary — without revealing who they are. This aligns directly with the commitments laid out in the European Digital Identity Regulation: access to digital services must be privacy-protective by design (recital 4), supported by privacy-enhancing technologies (recital 14), and uphold the principle of unobservability (recital 32).

In this light, Article 5a(16)(b) provides a clear obligation: when attributes are presented together, this must be done in a way that avoids unnecessary identification of the User. Instead, a privacy-preserving cryptographic binding between attestations opens the door to new possibilities. It enables the transition of many real-world processes — currently performed under full User identification — into more private digital equivalents.

Consider, for example, eligibility checks for educational programs. A student should be able to prove they reside in a particular city (as attested in their PID) and have qualifying grades (from a diploma) without revealing their name, gender, or exact address. With the right cryptographic mechanisms in place, we can minimize data exposure while maintaining trust in the combination of presented attributes.

Note that:

• By definition, cryptographic binding between attestations can only be used for PIDs and device-bound attestations.
• This version of the ARF does not specify or reference a specific cryptographic mechanism to implement cryptographic binding between attestations. However, Topic 18 specifies high-level requirements for a cryptographic binding between attestations scheme.
• This ARF assumes that each Wallet Unit (and therefore each WSCA/WSCD and keystore) contains attestations for only one User (see also Section 3.2). Therefore, a proof of cryptographic binding between two attestations proves that these attestations belong to the same User. However, some additional actions must be done to use such a mechanism in practice:
  • During attestation issuance, an Attestation Provider must request the Wallet Unit to bind the new attestation to an existing PID or attestation. For this, the Attestation Provider must verify that the existing PID or attestation refers to the same User to whom the new attestation refers. How the Attestation Provider does this is out of scope of the ARF. For example, the Attestation Provider could request the User name and birth date from a PID on the Wallet Unit, verify that this information matches a record in its database, issue an attestation corresponding to the information in that record, and then request the Wallet Unit to bind the public key in that attestation to the public key in the PID.
  • A Relying Party that has verified a proof of cryptographic binding between two attestations needs to verify that these attestations belong to the User presenting them. This is User binding, as discussed in Section 6.6.3.9. Note that, if User binding is proven for one of the bound attestations, it is proven for all of them.

6.6.3.11 Relying Party Instance trusts issuer to have authenticated the Wallet Unit and the Wallet Provider

The Relying Party Instance does not have a way to directly verify the authenticity of the Wallet Unit and the Wallet Provider. Rather, the Relying Party trusts the PID Provider or the Attestation Provider to have done this during issuance of the PID or attestation.

6.6.3.12 Relying Party optionally trusts issuer to regularly verify that Wallet Unit is not revoked

Section 6.6.2.5 explained how a PID Provider or an Attestation Provider can verify that a Wallet Unit is not revoked, using the revocation information in the WIA and KA. That section also noted that the CIR 2024/2977 requires PID Providers to verify regularly, during the entire lifetime of the PID, whether the Wallet Unit on which that PID is residing is revoked by the Wallet Provider. If that happens, the PID Provider must revoke the PID. Therefore, by verifying the revocation status of the PID, the Relying Party Instance can also trust the revocation status of the Wallet Unit. Consequently, there is no need for a separate mechanism that would allow the Relying Party to verify the revocation status of a Wallet Unit directly with the Wallet Provider.

Attestation Providers can use the same mechanism to provide the same assurance to Relying Parties, although this is not required by the CIR. If an Attestation Provider does not support this, a Relying Party obtaining an attestation issued by that Attestation Provider has no way of knowing whether the Wallet Unit is revoked. It is up to a Relying Party to check, before requesting a particular type of attestation from Wallet Units to fulfil a particular use case, if the Attestation Provider provides this assurance. If not, the Relying Party must decide whether the associated risk is acceptable.

6.6.3.13 Wallet Unit enables the User to report suspicious requests by a Relying Party and to request a Relying Party to erase personal data

A Wallet Unit enables the User to report unlawful or suspicious requests for personal data by a Relying Party to a Data Protection Authority (DPA). To allow this, a Wallet Unit provides a dashboard displaying a log of all attestation presentation transactions (as well as all other types of transaction) performed by the Wallet Unit. For presentation transactions, this log includes the identifiers of the attributes that were requested and presented, but not their values. For high-level requirements on this transaction log, see Topic 19.

The Wallet Unit enables the User to easily report a suspicious presentation request in the transaction log to a DPA. By default, this is the DPA that supervises the Relying Party, but if the Wallet Unit does not know which DPA this is (because this information was not available during the transaction), it will present the User with the contact details of at least the DPA of the region in which the Wallet Provider resides. The User can make such a report regardless of whether any attributes were actually presented to the Relying Party. Even if the Wallet Instance prevented the presentation of any attributes, for instance because Relying Party authentication failed, or if the User did not approve the presentation of any attributes, the User can still report the request to a Data Protection Authority.

For more information and requirements on reporting presentation requests to a DPA, see Topic 50.

The dashboard and the transaction log kept by the Wallet Unit also enable the User to request a Relying Party to delete personal data in accordance with Regulation (EU) 2016/679 (the GDPR). In the context of EUDI Wallet, this personal data consists of attributes that were presented to the Relying Party by the User, using their Wallet Unit. Relying parties, which act as data processors or controllers, already have procedures, protocols, and interfaces in place to handle data deletion requests in accordance with the GDPR. Wallet Units re-use these already existing interfaces. As there are no standardised protocols and interfaces for this purpose, this implies that a Wallet Unit can either

• open a specific URL with an external browser to ask for the deletion of data in a web form provided by the Relying Party,
• open an external mail client with a suitable template text, or
• open an external phone client to enable the User to call the Relying Party.

The registration certificate of the Relying Party (see Section 6.4.2) contains the necessary contact information, including the URL of a web form for privacy-related enquiries, an e-mail address, and/or a phone number.

A Relying Party may use the services of an intermediary to request data from a Wallet Unit, see Topic 52. However, such intermediaries are required to delete any data they obtain from a Wallet Unit immediately after sending it to the Relying Party. Data deletion requests are therefore always sent to the Relying Party, not the intermediary.

For more information and requirements on requesting a Relying Party to delete personal data, see Topic 48.

6.6.4 PID or attestation presentation to another Wallet Unit

6.6.4.1 Introduction

Section 6.6.3 discussed the trust relationships necessary when a Wallet Unit receives a request from a Relying Party Instance and presents attributes to that Relying Party Instance. However, the European Digital Identity Regulation requires that a Wallet Unit is also able to receive such a request from another Wallet Unit, and present attributes to that requesting Wallet Unit. In this context, the ARF calls the requesting Wallet Unit the Verifier Wallet Unit, and the presenting Wallet Unit the Holder Wallet Unit. The User of a Holder Wallet Unit is called a Holder, and the User of a Verifier Wallet Unit is called a Verifier.

Wallet-to-Wallet interactions cover use cases where a natural person, the Holder, wishes to present a PID or attestation to another natural person, the Verifier, where both are using their Wallet Units. As an example, the use case could occur in a setting where one private person (the Verifier) wants to rent out their car to another private person (the Holder), provided the Holder has a valid driving licence.

Note that legal entities are not allowed to bypass the processes and rules governing Relying Parties, in particular regarding the obligation to register, by using Wallet-to-Wallet interactions. Therefore,

• Wallet-to-Wallet interactions will only take place in proximity, not remotely. This ensures that both Users are aware of the device they are connecting to, because they have to present and scan a QR code or NFC tag. Being in proximity also allows for out-of-band communication and authentication possibilities between Holder and Verifier.
• Wallet Units will be restricted in the number of times they can act as a Verifier per unit of time. Since many Relying Parties will need to have frequent interactions with multiple Wallet Units, this ensures that it will not be feasible for a Relying Party to use a Wallet Unit for all of these interactions.
• A User will need to select a dedicated 'Holder Wallet Unit' mode to start using Wallet-to-Wallet interactions. If this mode is selected, a Holder Wallet Unit will clearly indicate to its User that they are presenting attributes to another natural person, and that they should not proceed if they are in fact interacting with a legal entity.

For more information and high-level requirements, please refer to Technical Specification 9 and Topic 30. The next section describes a Wallet-to-Wallet transaction flow on a high level.

6.6.4.2 General transaction flow

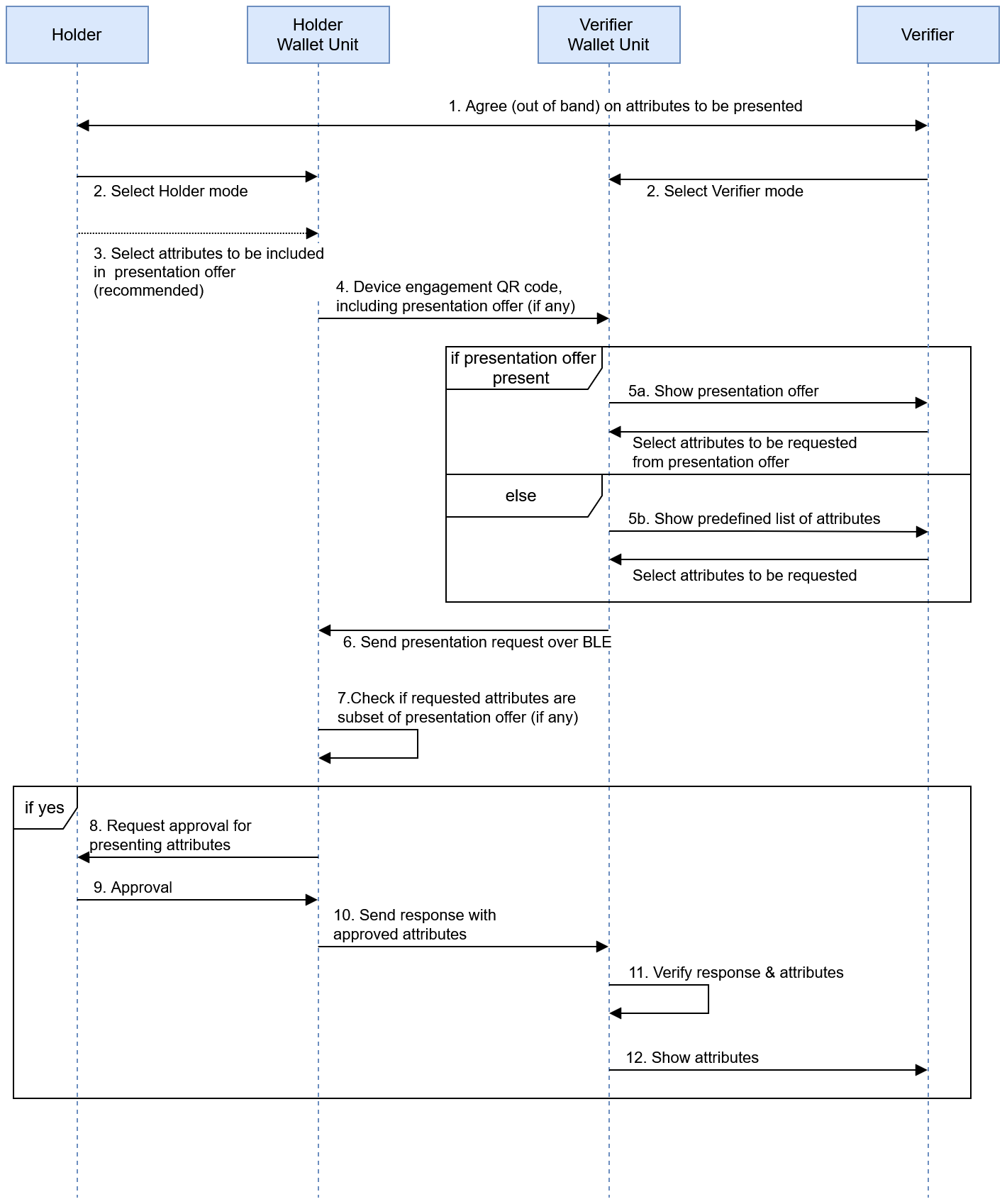

Figure 15 shows the transaction flow for Wallet-to-Wallet interactions.

Figure 15 Wallet-to-Wallet transaction flow

The transaction flow can be described as follows:

1. The two EUDI Wallet Users meet in physical proximity and agree that one (the Holder) will present specific attributes from a PID or attestation to the other (the Verifier). This agreement takes place out of band of the EUDI Wallet ecosystem; typically, it will be done orally.
2. Both Users select a dedicated 'Wallet-to-Wallet mode' in their respective Wallet Unit and are asked to specify their role (Holder or Verifier).
3. The Holder Wallet Unit gives the Holder an option to suggest to the Verifier which PID or attestation, and which attributes, the Verifier should request. This suggestion is called a presentation offer.
4. A handshake protocol (called device engagement in ISO/IEC 18013-5) is performed and a data connection is established between the two devices as specified ISO/IEC 18013-5. This protocol also sends the presentation offer to the Verifier, if the User specified such an offer.
5. The Verifier tells the Verifier Wallet Unit what attributes should be included in the presentation request: - If the Holder specified a presentation offer in step 3, the Verifier Wallet Unit displays the offer to the Verifier. The Verifier selects all or a subset of the offered attributes, but is not allowed to add additional attributes. - If there is no presentation offer in the handshake, the Verifier Wallet Unit assists the Verifier in creating a presentation request from scratch, by allowing the Verifier to select attributes from a pre-defined list populated by the Wallet Provider.
6. The Verifier Wallet Unit sends the presentation request to the Holder Wallet Unit.
7. The Holder Wallet Unit checks if the presentation request matches the presentation offer created in step 3 (if any), and aborts the transaction in case the request contains attributes that were not present in the offer. The Holder Wallet Unit informs the Holder about the reason for aborting. If no presentation offer was sent in step 4, then this check is omitted.
8. The Holder Wallet Unit prompts the Holder for approval to present the requested attributes to the Verifier.
9. The Holder approves the presentation.
10. The Holder Wallet Unit sends a presentation to the Verifier Wallet Unit.
11. The Verifier Wallet Unit verifies the received presentation.
12. The Verifier Wallet Unit presents the received attributes to the Verifier.

Notes:

• Step 2 ensures that both parties actively accept that a local data connection towards a natural-person Wallet Unit will be established. For the Holder this is very important, because many (if not all) of the verifications usually done on a presentation request from a Relying Party will not be performed when a Wallet Unit acts as a Holder Wallet Unit; see the note to step 6 below. For the Verifier, this is necessary as well, since the functionality offered by a Verifier Wallet Unit is completely different then when acting a 'normal' Wallet Unit.
• In step 3, if the Holder wishes to let the Verifier specify the requested information, the presentation offer is left empty. However, the use of a presentation offer is recommended, as this increases the chance of success of the use case.
• Step 4 establishes a local data connection. ISO/IEC 18013-5 requires that an mdoc reader (i.e., a Verifier Wallet Unit) must support both a QR code and NFC for device engagement, and both BLE and NFC for data retrieval. An mdoc (i.e., a Holder Wallet Unit) then chooses to use either a QR code or NFC for device engagement, and either BLE or NFC for data retrieval. The requirements regarding supported technologies are therefore more stringent for an mdoc than for an mdoc reader. Depending on the device it's installed on and the technologies chosen by the Holder, this may mean that a Wallet Unit is not able to act as a Verifier Wallet Unit. For example, if a Holder Wallet Unit uses only NFC for device engagement, then a Wallet Unit on a device that does not have NFC will be not be able to act as a Verifier Wallet Unit towards that Holder Wallet Unit. Technical Specification 9 therefore limits the choice offered by ISO/IEC 18013-5 and stipulates that in Wallet-to-Wallet interactions, device engagement always uses a QR code and data retrieval always uses BLE.
• In step 5, if the offered attributes do not fulfil the needs of the Verifier for the use case, the Verifier may decide to stop the transaction and return to step 1 to communicate (out of band) to the Holder which attributes the Holder should offer.
• In step 5, if there is no presentation offer, the Verifier Wallet Unit will present the Verifier with a list of 'frequently used' attributes to include in the presentation request. Conceivably, the Verifier Wallet Unit may limit the number of attributes in the list by asking the Verifier a set of pre-defined questions about the purpose of the use case. However, there is no guarantee that the Holder Wallet Unit contains these attributes. For the success of the use case, the presence of a presentation offer is very helpful.
• A user-friendly User interface is important in steps 3 and 5 (when Users select what attributes to offer cq. request).
• In step 6, a presentation request from a Verifier Wallet Unit does not contain an access certificate (see Section 6.6.3.2) or a registration certificate (see Section 6.6.3.3). The Holder therefore cannot be certain about the Verifier's identity, nor is there any check regarding the Verifier's reasonable need to request these User attributes. This is because a Verifier is a User, and is not required to register as a Relying Party. Additionally, because there is no registration certificate in the presentation request, the Holder Wallet Unit is not able to evaluate an embedded disclosure policy, if existing, see Section 6.6.3.4.
• However, the presentation request in step 6 will include a cryptographic proof that the Verifier Wallet Unit is a genuine, non-revoked EUDI Wallet Unit operated by a recognised Wallet Provider, once a common method to provide such a proof will be available. ETSI is preparing a technical specification of such a common method, which will probably use a WIA of the Verifier Wallet Unit. If such a proof is available in the request, the Holder Wallet Unit will verify it.
• In step 11, the Verifier Wallet Unit verifies the authenticity of the presented PID or attestation in the same way a Relying Party Instance does, as specified in Section 6.6.3.6. This implies that the Verifier Wallet Unit needs to obtain the trust anchors of the relevant PID Provider or Attestation Provider from the respective Trusted List or LoTE. Additionally, the Verifier Wallet Unit optionally also verifies the revocation status of the presented PID or attestation as specified in Section 6.6.3.7.

6.6.5 PID or attestation presentation to an intermediary

Section 3.11.4 introduced intermediaries, which are a special category of Relying Party. An intermediary interacts with a Wallet Unit to request User attributes on behalf of another (intermediated) Relying Party. The current section explains the interactions between the intermediated Relying Party, the intermediary, and the Wallet Unit in the course of such an interaction.

1. The intermediary registers once as a Relying Party with a Registrar (see Section 3.17) and obtains one or more access certificate(s) (see Section 3.18) bearing its own Relying Party identifier and trade name and Relying Party Service identifier and trade name. These access certificates are not different from an access certificate issued to a 'normal' Relying Party, since an intermediary is, as a matter of legal fact, a Relying Party. As explained in Section 3.11.3, an intermediary needs a separate access certificate for each of its Relying Party Instances.

   Moreover, according to the (amended) CIR 2025/848, Annex IV, point 3(k), an access certificate for an intermediary contains "an association to the wallet-relying party that is relying upon the intermediary to whom the wallet-relying party access certificate has been issued and that is acting on behalf of the relying party who intends to rely upon the wallet." This implies that an intermediary receives a separate set of access certificates for each of its intermediated Relying Parties. For example, if an intermediary has 100 Relying Party Instances and 1000 customers (intermediated Relying Parties), it will need to request and manage 100.000 access certificates.

   In addition, the intermediary receives one or more registration certificate (see Section 3.19). However, these registration certificates will not be used in intermediated transactions. 1. Next, the intermediary tries to find customers, meaning Relying Parties that want to use the intermediary's services to connect to Wallet Units and request User attributes on their behalf. If Relying Parties signs up with them, the intermediary ensures that they are registered in the Member State where they are established; as described in Section 6.4.2. The intermediary also ensures that it receives a registration certificate for each of the registered intended uses of the intermediated Relying Party. Finally, the intermedia also registers the new intermediated Relying Party with its own Registrar, see the (amended) CIR 2025/848, Annex I, point 16.

   Note that it is up to each Registrar to design a suitable process to achieve these goals. For example, it may decide an intermediary can register the intermediated Relying Parties at the Registrar, and receive the registration certificates in return. Alternatively, the Registrar could request the intermediated Relying Parties register themselves and indicate the intermediary they will be using, in which case they will receive the registration certificates and must send them to the intermediary. Alternative processes can be used as well.

   The registration certificates of the intermediated Relying Party show that it uses the services of the intermediary; both entities are identified by their unique Relying Party identifier and Service identifier. Before registering this relationship between an intermediary and an intermediated Relying Party and issuing a registration certificate attesting to this, a Registrar ensures it obtains legally valid evidence that this particular Relying Party will indeed use the services of this particular intermediary to interact with Wallet Units. A Registrar is free to decide which evidence it needs and how it obtains this evidence. For example, the Registrar could require either the intermediary or the Relying Party to provide a signed copy of the contract between both parties. Alternatively, the Registrar could ask an authorised representative of the Relying Party to sign off on a registration that was done by the intermediary, or could ask for a legally valid mandate from the intermediated Relying Party to the intermediary to register the Relying Party. 1. When asked by an intermediated Relying Party, the intermediary will request a presentation of attributes from a Wallet Unit, using one of the flows described in Section 4.4. For this, the intermediary will use its own access certificate (containing the association to the intermediated Relying Party, see point 1. above) and the registration certificate of the intermediated Relying Party (point 2. above). 1. If the Wallet Unit sees in the registration certificate that the Relying Party uses the services of an intermediary, it verifies that the identifier and Service identifier of the intermediary listed in the usesIntermediary field of the registration certificate are identical to the identifier and Service identifier listed in the access certificate. If this verification is not successful, the Wallet Unit informs the User and, depending on the Wallet Provider's security policy, may stop the transaction. If the verification is successful, the Wallet Unit displays only the trade name of the intermediated Relying Party, together with the trade names of its Service, to the User when asking for User approval to present the requested attributes.

   Note: The Wallet Unit does not display the trade names of the intermediary and its Service to the User, because the intermediary operates on behalf of the intermediated Relying Party and is not a party in the use case taking place between the User and the Relying Party. The User would probably not expect or recognise the name of the intermediary or its Service, and may be confused if the Wallet Unit would show these names. However, the intermediary name and service are logged by the Wallet Unit, see Section 6.6.3.13, so the fact that an intermediary was used in the transaction is visible to the User.
   1. When a Wallet Unit presents a PID or attestation to the intermediary, the intermediary carries out the verifications described in Section 6.6.3, if the intermediary has agreed to do so with the intermediated Relying Party. This means it may verify the authenticity of the PID or attestation, its revocation status, device binding (if expected), and User binding, as well as any combined presentation of attributes, if applicable. Note that a Relying Party is not obliged to carry out all of these verifications. Therefore, the intermediary and any Relying Party using its services must agree on what verifications the intermediary will carry out. 1. If these verifications are successful, the intermediary forwards the User attributes it obtained from the Wallet Unit to the intermediated Relying Party. There must be an interface between an intermediary and a Relying Party, over which the intermediated Relying Party can request the intermediary to request some User attributes from a Wallet Unit and that the intermediary uses to send back the attribute values presented by the Wallet Unit. However, specifying this interface or the (security) requirements with which it needs to comply, is out of scope of the ARF. In particular, it is not required that the User attributes are end-to-end encrypted between the Wallet Unit and the intermediated Relying Party, such that an intermediary would not be able to see them. 1. The intermediary deletes any PIDs or attestations it obtained from the Wallet Unit, including any User attributes, immediately after it has sent the User attributes to the Relying Party. If the intermediary does not send any User attributes to the Relying Party, for example because one of the verifications in the previous step failed, the intermediary deletes the PIDs or attestations immediately after it has completed all necessary verifications.

Note that this approach implies that an intermediated Relying Party using the services of an intermediary will not need an access certificate.

For high-level requirements on intermediaries, see Topic 52.

6.6.6 PID or attestation management

6.6.6.1 Overview

Starting from the issuance of a logical PID or attestation, the PID or attestation is managed by the User and the PID Provider or Attestation Provider. Management is performed until the PID or attestation is deleted by the User (see Section 6.6.7) or the Wallet Instance is uninstalled by the User (see Section 6.5.5). Management includes at least the following processes:

1. Re-issuance of technical PIDs or attestations when necessary.
2. Deletion of an unusable technical PID or attestation, typically after it has been replaced in a re-issuance process.
3. Revocation of the PID or attestation when necessary.

These processes are discussed in the next subsections.

6.6.6.2 PID or attestation re-issuance

6.6.6.2.1 Introduction

Re-issuance means the replacement of a technical PID or attestation that already exists in a Wallet Unit by a technical PID or attestation having the same attestation type. Moreover, the existing and the new technical PID or attestation represent the same logical PID or attestation, see Section 5.3.Re-issuance is therefore always performed by the same PID Provider or Attestation Provider that issued the existing PID or attestation. Re-issuance is always initiated by the Wallet Unit, although the User may prompt the Wallet Unit to start the process, and the PID Provider or Attestation Provider may tell the User that re-issuance is necessary.

The value of the attributes in the new PID or attestation will typically be the same as in the original PID or attestation. However, this is not required; the PID Provider or Attestation Provider may change one or more attribute values, and this may actually be the reason for re-issuance.

Note that, in general, if the logical PID or attestation was originally issued in the form of a batch of technical PIDs or attestations, then the PID Provider or Attestation Provider will re-issue a batch of technical PIDs or attestations as well.

Re-issuance is only applied within the administrative validity period of a logical PID or attestation, if applicable. As an example, a mobile driving licence (mDL) will be issued in the form of technical attestations which typically have a technical validity period shorter than the administrative validity period of the licence itself. Re-issuance is used for obtaining fresh technical attestations as needed during the administrative validity period, to ensure that the User can always present a valid mDL. When the administrative validity period ends, there will be an administrative process for obtaining a new driving licence, which is however out of scope of this document. Note that not all logical PIDs and attestations have an administrative validity period. For example, a diploma often has no expiry date, nor will a voucher (since it will typically be usable only once).

There may be different reasons for re-issuing a PID or attestation, for example:

• The current technical PID(s) or attestation(s) are near the end of their technical validity period, or the Wallet Unit is running out of once-only attestations. A short technical validity period or a requirement that an attestation can be presented only once are used to mitigate the risk of Relying Party linkability. For more information, see Section 7.4.3.5.
• The value of one or more of the attributes in the logical PID or attestation has changed.
• The security architecture of the Wallet Solution uses PIDs and/or attestations that are issued just-in-time, at the moment that PID or attestation is being requested by a Relying Party. This is sometimes called synchronous issuing.

These reasons are discussed in the next subsections. Re-issuance is discussed in more detail in the Discussion Paper for Topic B.

6.6.6.2.2 Re-issuance to limit Relying Party linkability

As specified in ISO/IEC 18013-5 or SD-JWT VC, each technical PID or attestation contains metadata indicating its technical validity period. Determining the length of the technical validity period is the responsibility of the PID Provider or the Attestation Provider. The technical validity period chosen by the PID Provider or Attestation Provider will depend on several factors, primarily the security architecture of the Wallet Solution and the strategy chosen to mitigate Relying Party linkability, see Section 7.4.3.5.

Given the above factors, it can generally be assumed that the technical validity period of a PID or attestations will be much shorter than the lifetime of the corresponding logical PID or attestation, meaning the period of time that a User wants to keep that PID or attestation in their Wallet Unit. That implies that new technical PIDs and attestations will need to be re-issued periodically, to replace the ones that are reaching end of their technical validity.

A similar reason for re-issuing PIDs and attestations occurs when the PID Provider or Attestation Provider uses once-only attestations (see Section 7.4.3.5), which can be presented only once to a Relying Party. In that case, the Wallet Unit, or rather the User, will regularly need new technical PIDs or attestations to avoid running out and to remain able to use the logical PID or attestation.

Re-issuance of PIDs or attestations for these reasons is a purely technical matter. To the maximum extent possible, the User does not notice that new technical attestations have been issued for their logical PID or attestation, nor do they have to take any action to ensure that re-issuance happens in time. These conditions are very different from a first-time issuance of a PID or attestation, where the User must take the initiative to request the PID or attestation, and is potentially involved in the process in other ways as well.

This implies, among other, that no User authentication takes place during re-issuance for an existing logical PID or attestation. Nevertheless, a Wallet Unit may offer the User the option to receive a notification of re-issuance.

In the absence of User authentication, and to prevent that a re-issued technical PID or attestation ends up at the wrong User, the PID Provider or Attestation Provider ensures that a re-issued PID or attestation is issued to same Wallet Unit as the technical PID or attestation it replaces. This can be done by the use of device-bound refresh tokens, see OpenID4VCI.

Finally, since the User is not involved, it is the Wallet Unit itself that triggers the re-issuance of PIDs and attestations when necessary.

6.6.6.2.3 Re-issuance because of a change of attribute values

During the lifetime of a logical PID or attestation, the value of some of the attributes may change. For example, at the date of birth of the User, an age attestation attribute (i.e., an attribute indicating whether the User has reached a certain age) may have to be changed from value False to value True. In another example, the User of a mobile driving licence may have passed the examination for a different vehicle category. In this case, the PID Provider or Attestation Provider re-issues technical PID(s) or attestation(s) with the correct attribute values, and revokes the existing technical attestation(s).

Re-issuance of a PID or attestation for this reason will have an impact on the User, because they will notice that their attribute values have been changed. Therefore, in this case Users will be informed when re-issuance happens. Additionally, an Attestation Provider may state in their terms of conditions that re-issuance of an attestation may be used.

6.6.6.2.4 Re-issuance when using synchronous issuing

A third reason for re-issuing a technical PID or attestation is where the PID Provider or Attestation Provider uses synchronous issuing in their security architecture. In such an architecture, the Wallet Unit requests the re-issuance of a new technical PID or attestation after it has received a request for presentation of the corresponding logical PID or attestation from a Relying Party. Such a technical PID or attestation is very short-lived and is used only once.

The conditions on User awareness and authentication discussed in Section 6.6.6.2.2 are also valid for a synchronous re-issuance process.

6.6.6.3 Deletion of unusable technical PIDs or attestations

Some time after it is issued, a technical PID or attestation will become unusable, in the sense that the User cannot present it any longer to a Relying Party. For example, it expires, or a once-only PID or attestation (see Section 7.4.3.5) has been presented to a Relying Party already. Typically (but not always), such a technical PID or attestation will already have been replaced in a re-issuance process as described in Section 6.6.6.2.2.

Wallet Providers need to decide what to do with unusable technical PIDs or attestations. Non-device-bound attestation can be simply deleted, but for PIDs and device-bound attestations this is more complicated, as the Wallet Provider needs to manage the associated private keys in the WSCA/WSCD or keystore of the Wallet Unit. Typically, the amount of storage space available in a WSCA/WSCD or keystore is limited, and Wallet Providers will want to delete these keys to prevent an accumulation of unused private keys. Deletion of cryptographic assets in the WSCA/WSCD in particular is a cryptographic key operation and cannot be done without User authentication by the WSCA/WSCD; see Section 6.5.3.3. At the same time, for usability reasons the User should not be involved in such 'cleaning up' processes, just like the User does not have to take any action for re-issuance processes (Section 6.6.6.2.2).

The recommended solution for this challenge is to ensure that, whenever the WSCA/WSCD successfully authenticates the User, the Wallet Unit checks if there are any technical PIDs or device-bound attestations that cannot be presented any longer to Relying Parties. The Wallet Unit then requests the WSCA/WSCD to destroy all cryptographic key material in the WSCA/WSCD related to these PIDs or attestations. Thus, the Wallet Unit takes advantage of the fact that the User authenticates for another purpose, for example because they want to present a PID, to also carry out any necessary key deletion operations. A last aspect of this to be mentioned here is that the Wallet Unit will not delete the last technical PID or attestation corresponding to a logical PID or attestation, even when it is no longer usable. This is because that would mean the corresponding logical PID or attestation is deleted from the Wallet Unit. Instead, the Wallet Unit keeps such a last technical PID or attestation and keeps trying to trigger the re-issuance of new ones. See also Topic 40 in Annex 2.

6.6.6.4 PID or attestation revocation

PID or attestation management includes ensuring that PIDs and attestations can be revoked if necessary. The User can request the PID Provider or Attestation Provider to revoke the logical PID or attestation at least in case of loss or theft. The PID Provider or Attestation Provider can also decide itself to revoke a logical PID or attestation, for example in case the Wallet Unit on which the associated technical PIDs or attestations are residing is revoked; see Section 6.5.3.4, or for any other valid reason outside the scope of the EUDI Wallet ecosystem.

Revoking a logical PID or attestation implies that all technical PIDs or attestations associated with that logical PID or attestation will be revoked if they are still valid for more than 24 hours. Revocation of technical PIDs and attestations is discussed in Topic 7.

In addition to revoking a technical PID or attestation, a PID Provider or Attestation Provider can revoke the certificate that it used for signing that PID or attestation, or any intermediate certificate between that signing certificate and the corresponding trust anchor. In all of these cases, a Relying Party that performs revocation checking will not accept the technical PID or attestation.

6.6.7 PID or attestation deletion

In case the User no longer wants to retain a specific logical PID or attestation in their Wallet Unit, the User can delete it. If the PID Provider or Attestation Provider issued a batch of multiple technical PIDs or attestations corresponding to the logical attestation, the Wallet Unit deletes them all. Deleting a technical PID or a device-bound attestation also means that the WSCA/WSCD or keystore destroys the cryptographic key material associated with that PID or attestation. Before deleting critical assets of a PID, the WSCA/WSCD included in the Wallet Unit will authenticate the User.

The Wallet Unit also discloses the fact that it no longer contains the PID or attestation to the W3C Digital Credentials API framework, see Section 4.4.3.

For high-level requirements on this topic, see Topic 51.
